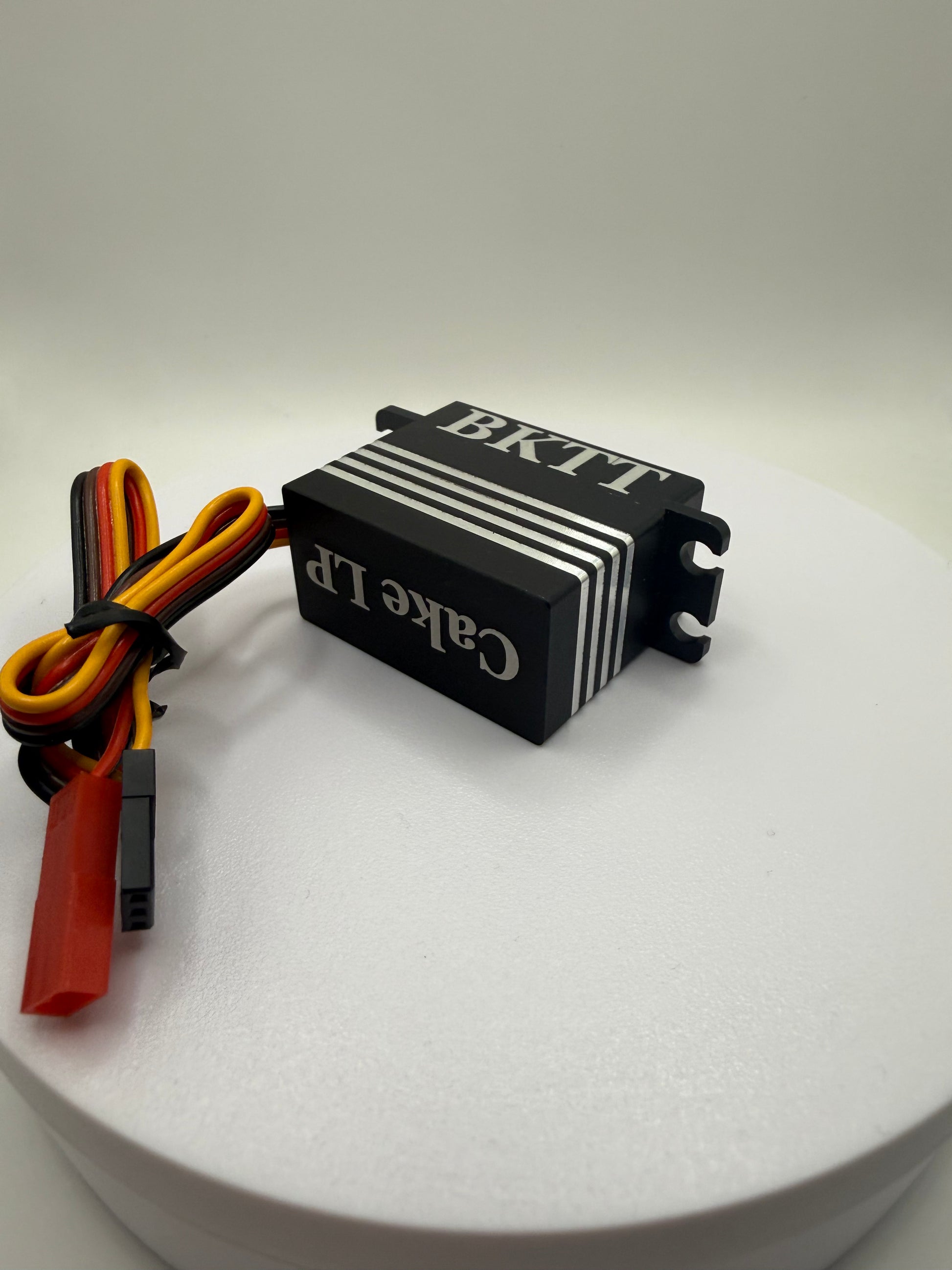

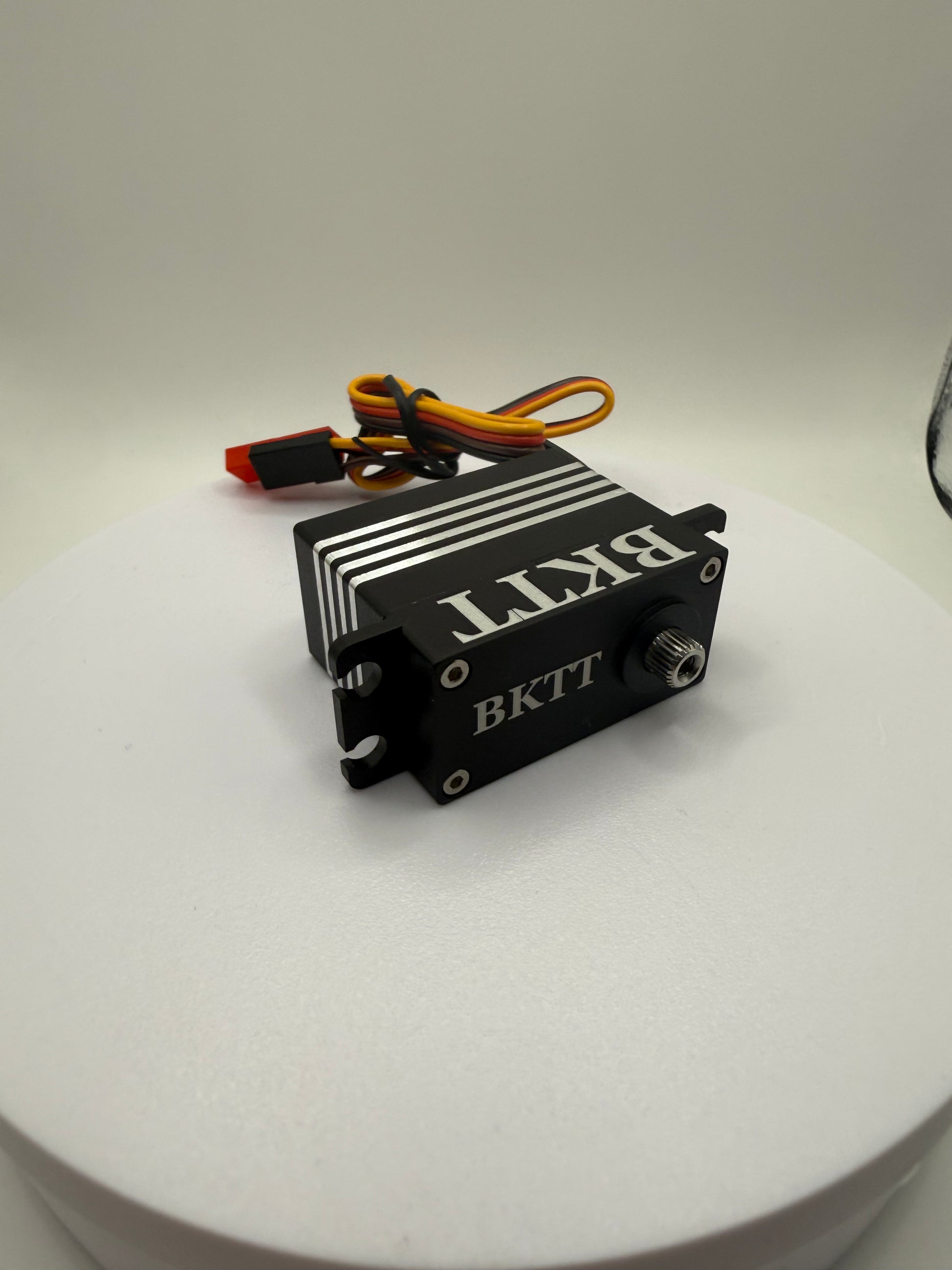

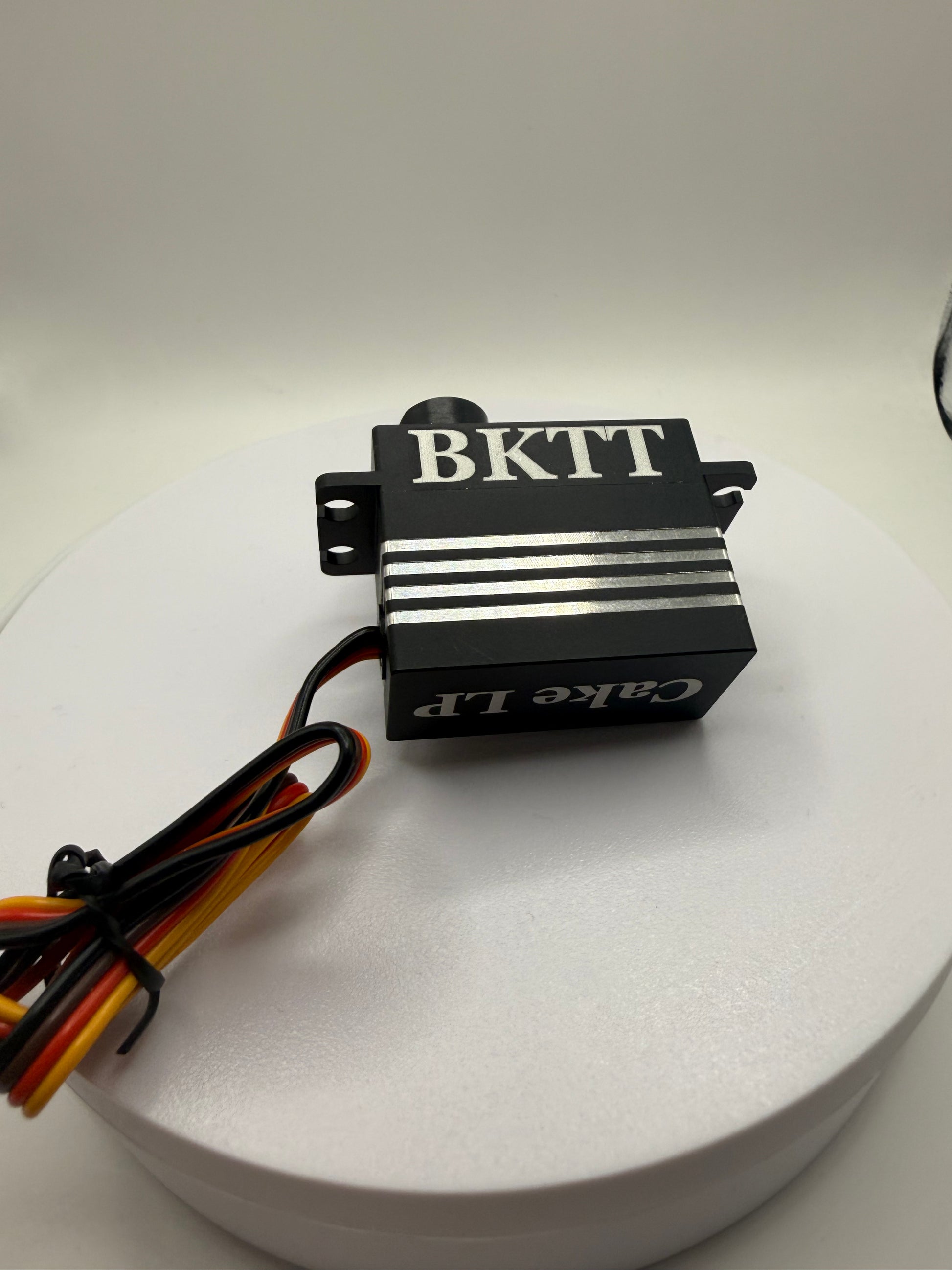

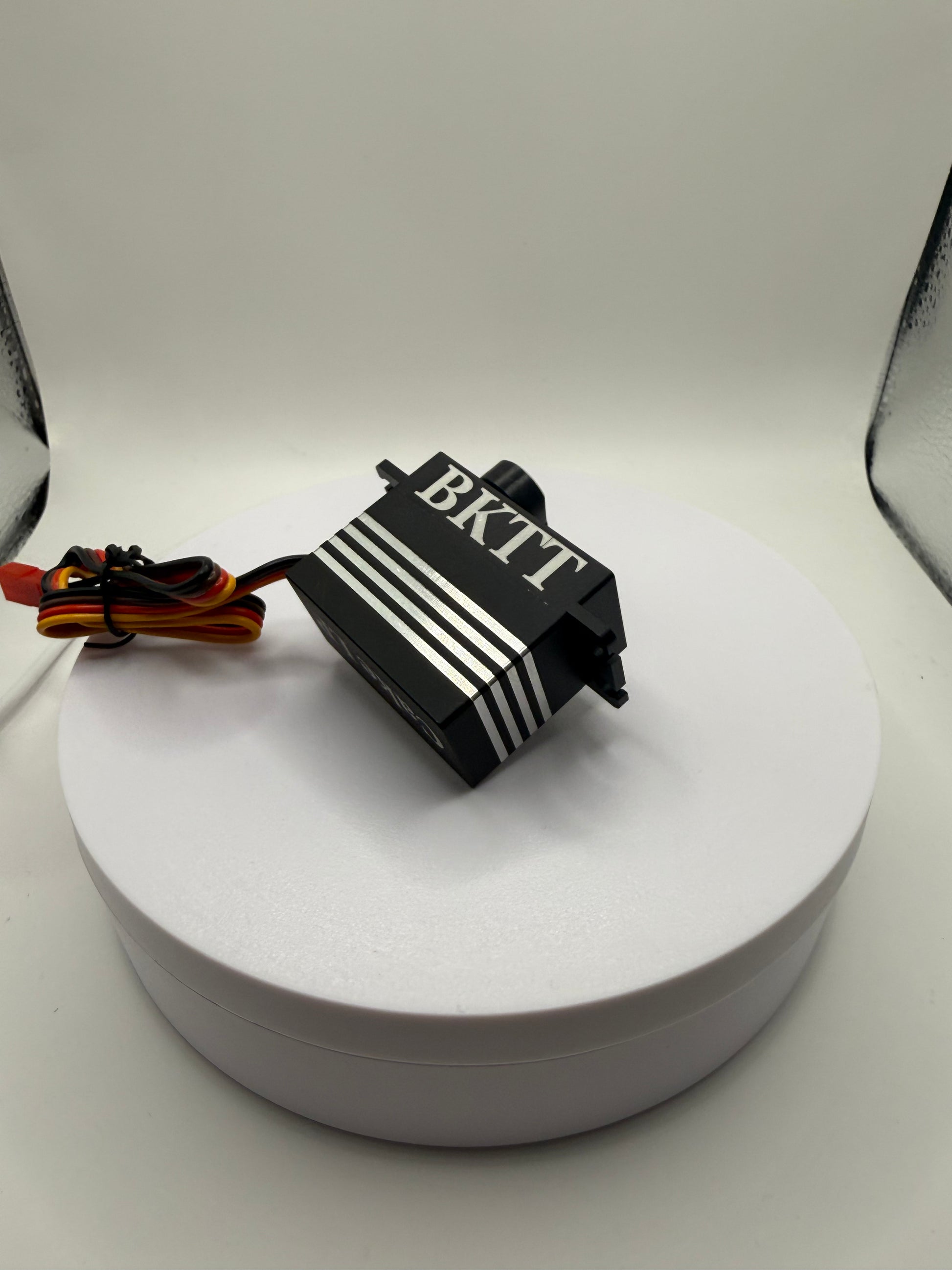

BKTT CAKE LP (low profile) 16.8v servo

Product features:

High performance 85kg-cm high torque high pressure digital short body steering gear

High precision gear made in Taiwan

High quality coreless motor

Double ball bearing

Dead band: 2us

Working frequence: 1520μs / 330hz

Operating Voltage: DC6~16.8V

Motor: coreless motorOperating

Temperature Range: -10 to + 60°C

Operating Speed (16.8V): 0.07sec/60°

Stall Torque (16.8V): 85kg.cm 1012 in-oz

Dimensions: 40.5X20X32.5mm

Weight: 79g

Wire Length: JR 260 mm Bearing: 2BB

Teeth:25T

here at BKTT, we take care of our customers. We offer a 90 day warranty on electronics and gearing. To submit a claim, just reach out and let us know you are order number and we can start the process. We will need the servo back to check out in troubleshoot before a replacement is granted. We did not cover misuse Or abuse to the servo. The original servo Has to come back in the Original condition as it left. No modifications can be moved as it will void the warranty
