This is for ESC tunes provided by us in testing conditions. Keep in mind these will get you close but rigs will still need fine tuning. these are fantastic base tunes.

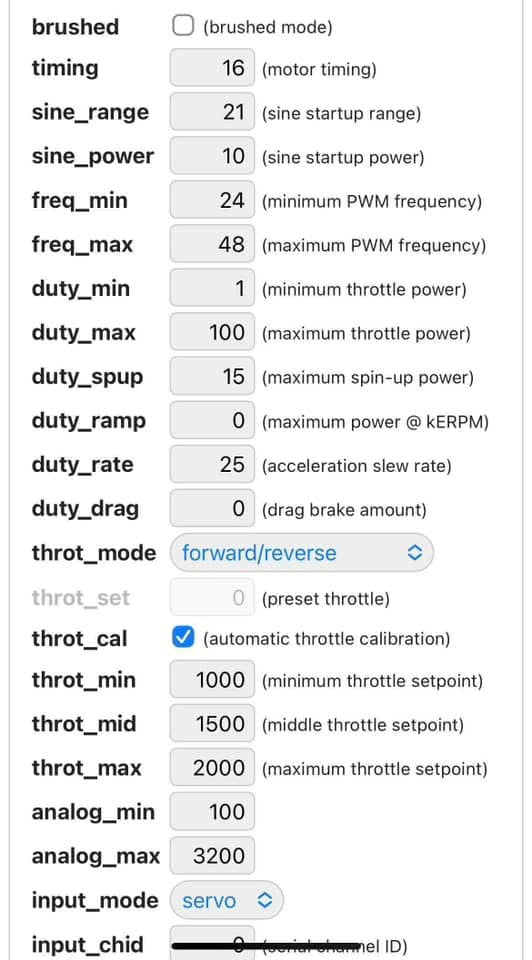

Here is a breakdown of the core ESCape32 settings, organized by the categories you'll see in the configurator.

General / Throttle

• Throttle Mode (throt_mode): Defines how the ESC responds to your transmitter. For crawlers, this is typically set to Forward/Reverse (Crawler mode) so you have instant reverse without double-tapping.

• Throttle Endpoints (throt_min, mid, max): Calibrates your radio's signal. Standard ranges are usually 1000 (full reverse), 1500 (neutral), and 2000 (full throttle).

• Throttle Deadband: Creates a small neutral zone around center stick so your truck doesn't creep forward or backward if the transmitter trigger doesn't return perfectly to zero.

Sine Mode (Low-Speed Smoothness)

• Sine Range (sine_range): Dictates how long the ESC stays in the ultra-smooth sine wave mode before switching to standard square wave for higher RPMs. Usually set between 20% and 25% for smooth crawling.

• Sine Power (sine_power): Controls how much physical force (torque) is applied during that low-speed sine phase. A setting of 8 to 12 provides a good balance of silent startup and enough grunt to move the truck.

• Startup Duty (duty_spup): The minimum amount of power sent to the motor just to get it spinning. If this is too low, the motor will cog or hesitate; if it's too high, the truck will jump forward. 10% to 15% is the sweet spot.

Brake / Drag

• Drag Brake (duty_drag): Holds the truck in place on an incline when you let off the throttle. For rock crawling, this should almost always be locked at 100% ( ring and pinion only) no worm

• Drag Brake Rate / Ramp: How aggressively the drag brake applies. A lower number rolls to a stop smoothly; a higher number slams the brakes on instantly.

Motor / Commutation

• Timing (timing): Controls how early the ESC fires the electrical phase into the motor.

• 12 to 16 degrees: Best for low-speed torque, efficiency, and crawling control.

• 18 to 22 degrees: Better for higher KV outrunners if you need more wheel speed, at the cost of some heat.

• PWM Frequency (freq_min / freq_max): How fast the ESC pulses power. 24kHz to 48kHz is standard. Higher frequencies make the motor run quieter but can generate slightly more heat in the ESC.

• Telemetry Poles (telem_poles): Must match the physical magnet count inside your motor for RPM calculations to be accurate (e.g., 14 poles for most outrunners, 12 poles for some specific micro motors).

Protection

• Voltage Protection (prot_volt): Low Voltage Cutoff (LVC). Cuts power when your battery gets dangerously low to prevent ruining your LiPo pack. Usually set around 3.3V to 3.5V per cell.

• Stall Protection (prot_stall): Cuts power if the motor gets completely bound up in the rocks, saving your ESC from burning out. Usually set between 2200 and 3500 ERPM.

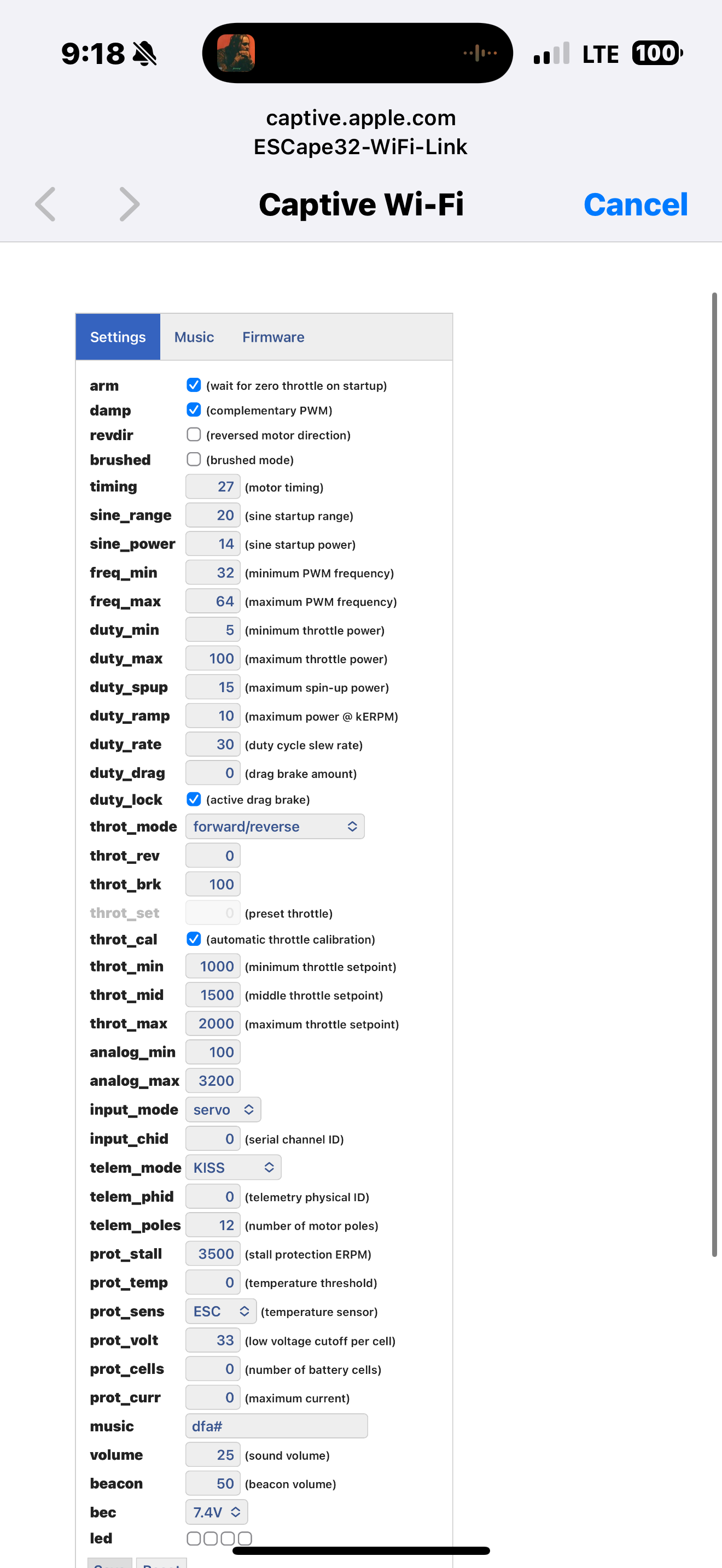

BKTT Icing 2800KV V2 motor escape32 tune

Motor & Startup

timing: 18 (balances torque and operating temperature)
sine_range: 20 (dedicated low-speed crawl band)
sine_power: 12 (low-end creeping power)
duty_spup: 15 (spin-up power off neutral)

PWM & Throttle

freq_min: 24 (minimum PWM frequency in kHz)
freq_max: 48 (maximum PWM frequency in kHz)
duty_min: 1 (minimum throttle power)
duty_max: 100 (maximum throttle power)
duty_ramp: 0 (linear power ramp)
duty_rate: 30 (duty cycle slew rate)
throt_mode: forward/reverse (instant bidirectional control)

Braking & Hold

duty_drag: 50( drag brake strength) only for ring/pinion
duty_lock: Enabled / Checked (active brake lock)

Pole count 12

Protection Settings

prot_stall: 3500 (stall protection ERPM threshold)
prot_volt: 33 (3.3V per cell low-voltage cutoff)
prot_cells: 0 (auto-detect battery cell count)

Quick Field Adjustments

Launch Stutter: Increase sine_power or duty_spup slightly.
Warm Motor: Dial sine_power down toward 18–20.
Aggressive Stops: Lower duty_drag to 50–70 if the descent stop is too abrupt.

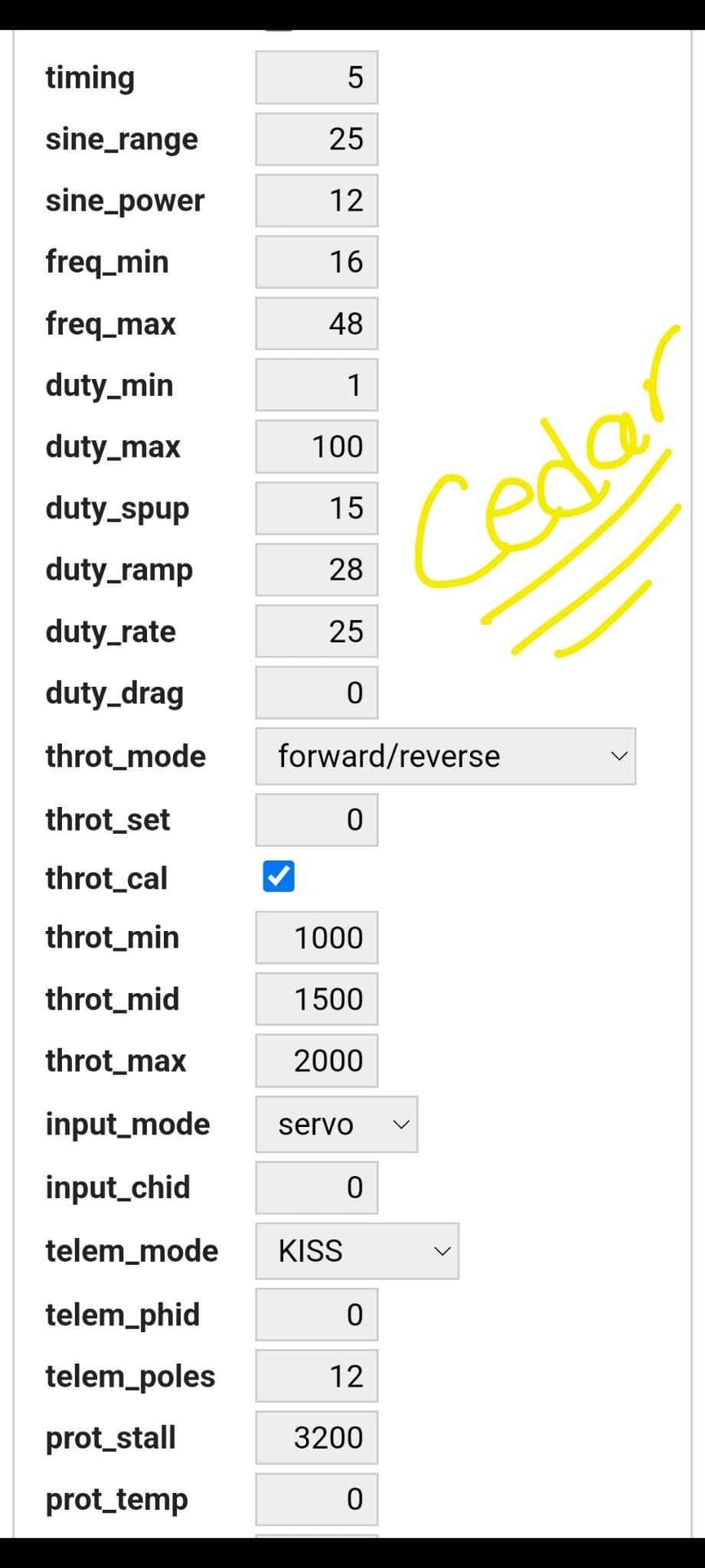

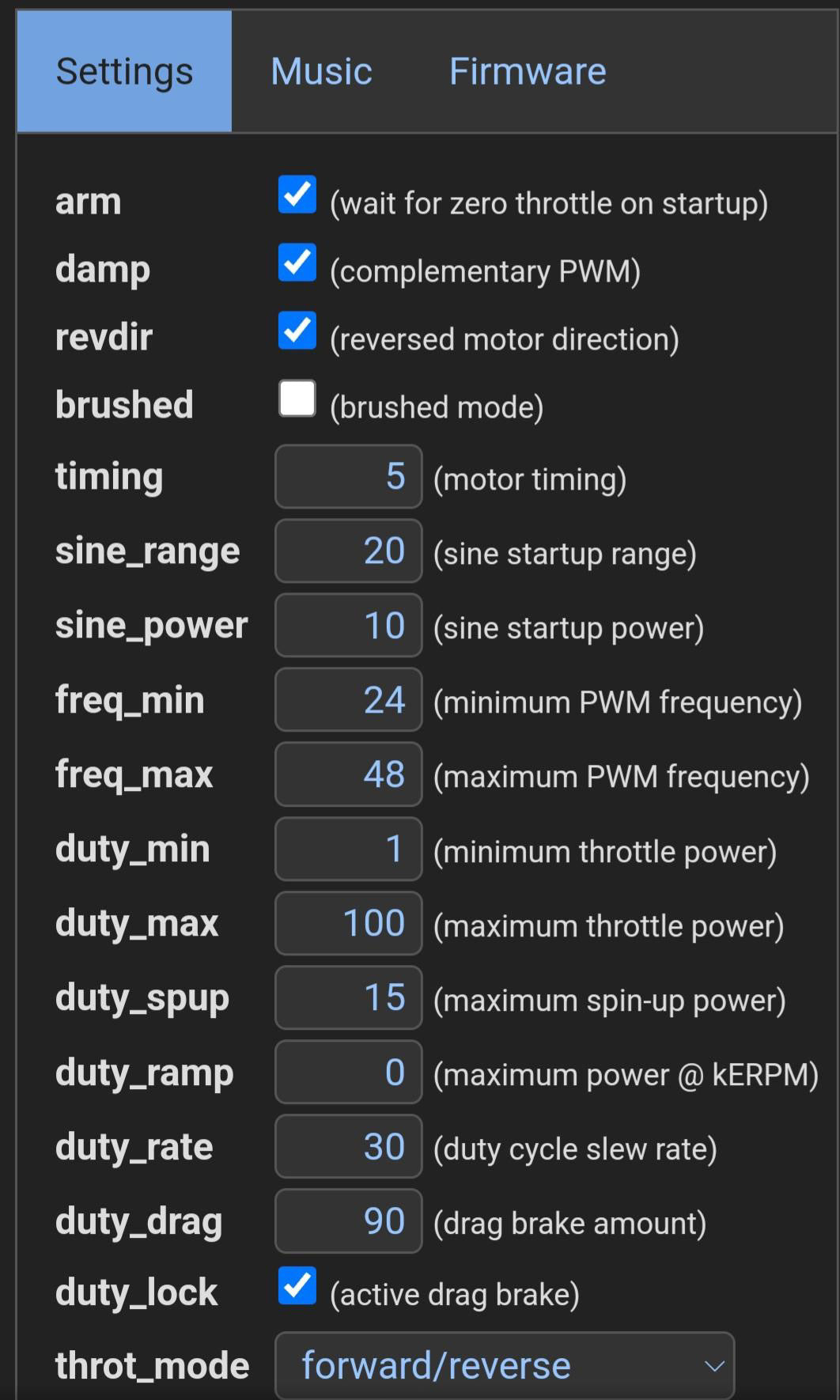

Furitek cedar:

timing=5
sine_range=20
sine_power=10
freq_min=24
freq_max=48
duty_min=1
duty_max=100
duty_spup=15
duty_ramp=0
duty_rate=30
duty_drag=90
duty_lock=1
throt_mode=forward/reverse
prot_stall=3000
prot_volt=33
prot_cells=0

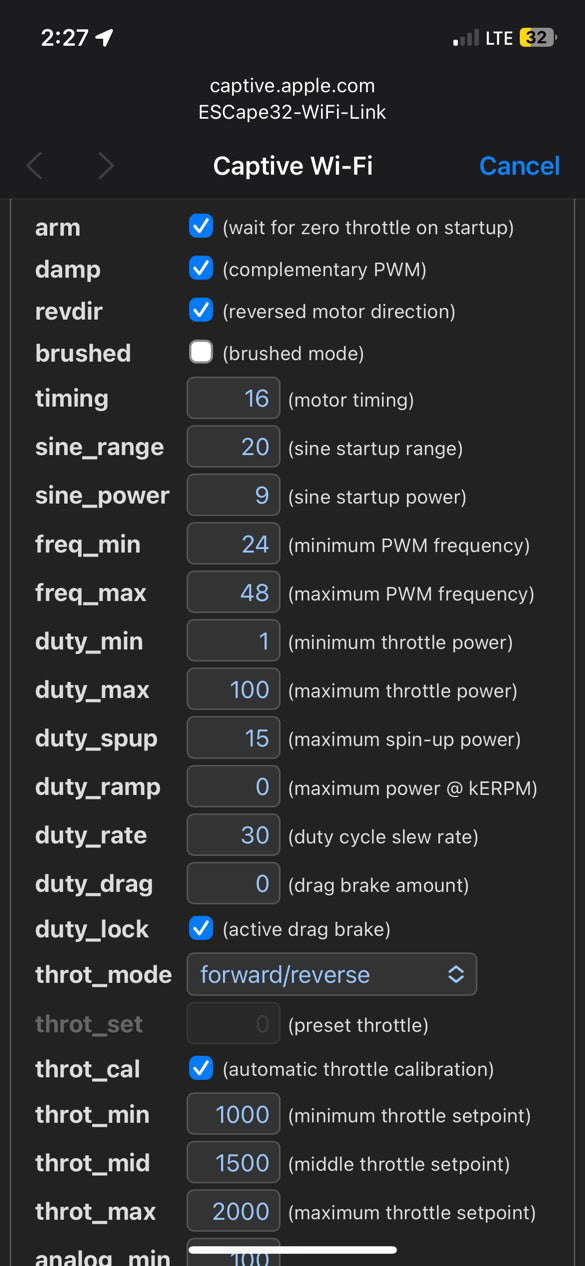

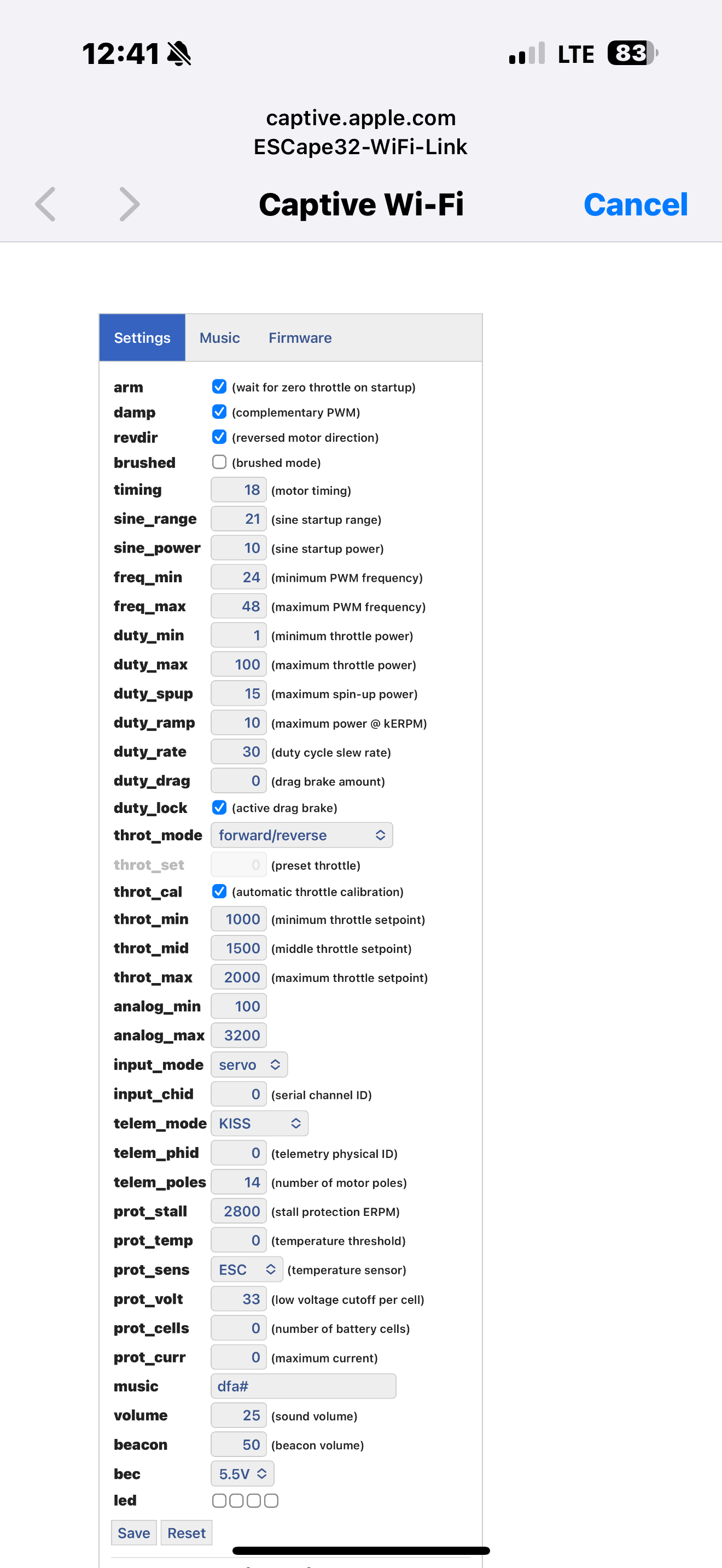

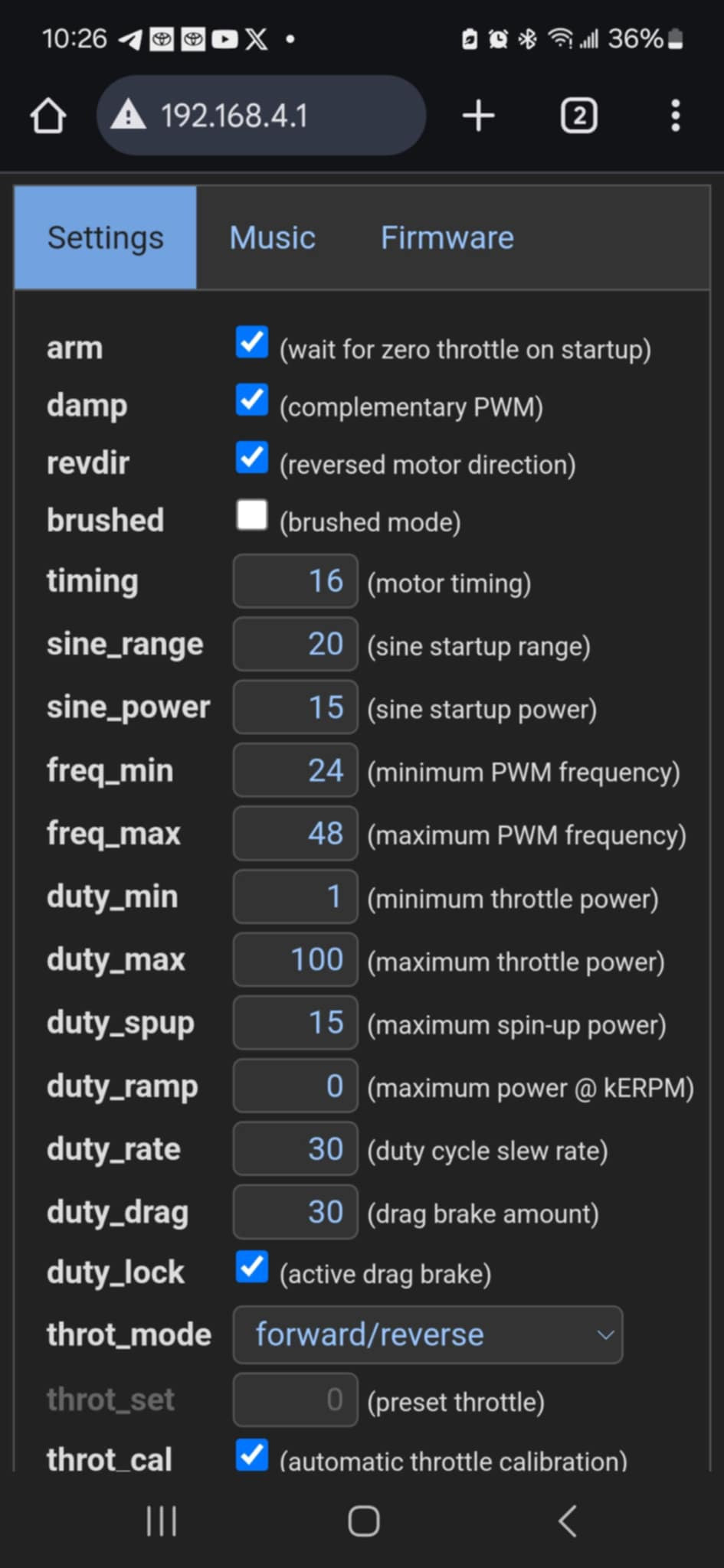

Mofo nano Bam V2

timing⁠: ⁠16⁠

⁠sine_range⁠: ⁠20⁠

⁠sine_power⁠: ⁠10⁠

⁠freq_min⁠: ⁠24⁠

⁠freq_max⁠: ⁠48⁠

⁠duty_min⁠: ⁠4⁠

⁠duty_max⁠: ⁠100⁠

⁠duty_spup⁠: ⁠12⁠

⁠duty_ramp⁠: ⁠0⁠

⁠duty_rate⁠: ⁠30⁠

⁠duty_drag⁠: ⁠30⁠

⁠duty_lock⁠: ⁠[X]⁠

⁠throt_mode⁠: ⁠forward/reverse⁠

⁠prot_stall⁠: ⁠2800⁠

low voltage cutoff: 33

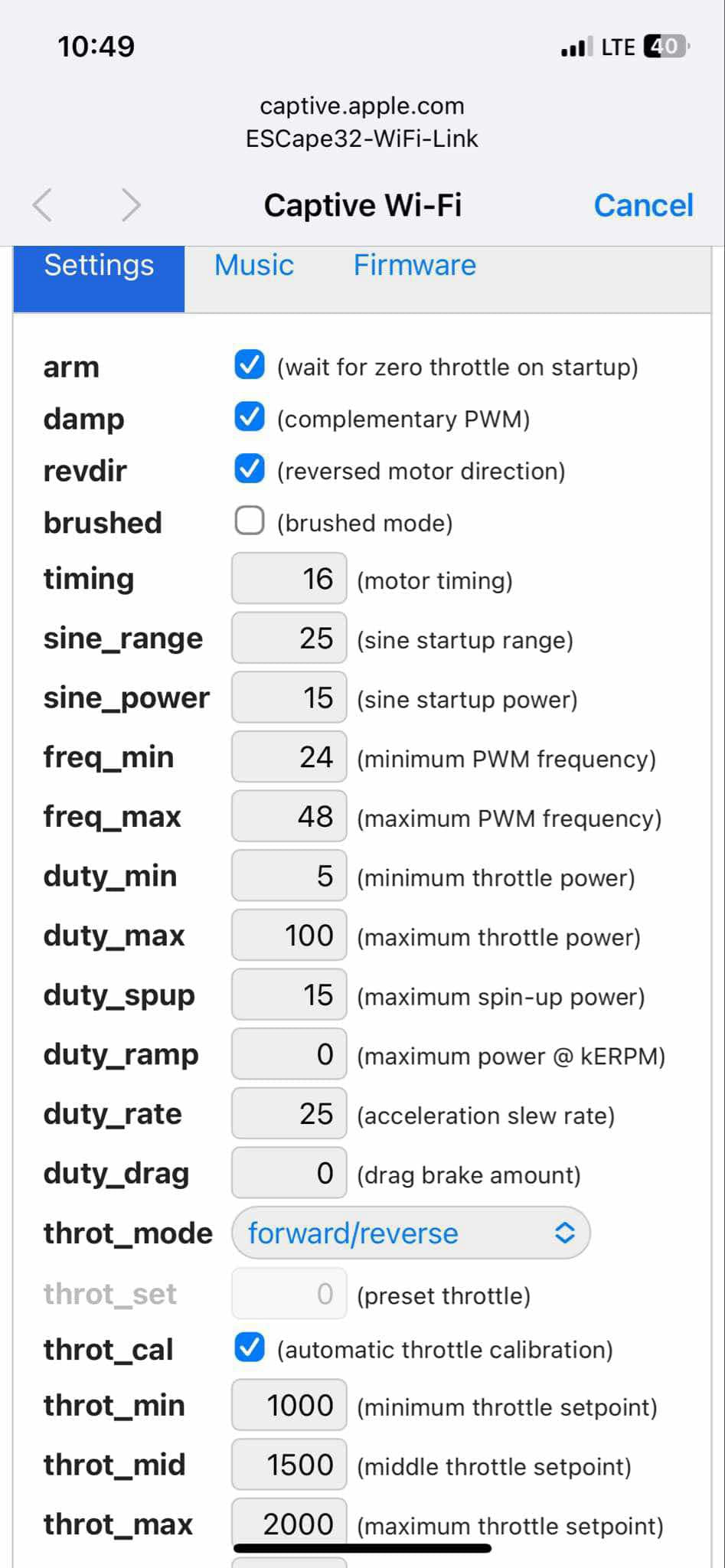

Furitek Micro Komodo setup:

⁠timing⁠: ⁠16⁠ (motor timing)

⁠sine_range⁠: ⁠25⁠ (sine startup range)

⁠sine_power⁠: ⁠11⁠ (sine startup power)

⁠freq_min⁠: ⁠24⁠ (minimum PWM frequency)

⁠freq_max⁠: ⁠48⁠ (maximum PWM frequency)

⁠duty_min⁠: ⁠5⁠ (minimum throttle power)

⁠duty_max⁠: ⁠100⁠ (maximum throttle power)

⁠duty_spup⁠: ⁠15⁠ (maximum spin-up power)

⁠duty_ramp⁠: ⁠0⁠ (maximum power @ kERPM)

⁠duty_rate⁠: ⁠30⁠ (duty cycle slew rate)

⁠duty_drag⁠: ⁠30⁠ (drag brake amount — adjust to preference/rig weight)

⁠duty_lock⁠: ⁠[X]⁠ (active drag brake enabled)

⁠throt_mode⁠: ⁠forward/reverse⁠

⁠prot_stall⁠: ⁠3200⁠ (Crucial text setting to eliminate the mid-throttle stutter

low voltage cutoff - 33

Mofo nano beast

Motor Timing: 5
Sine Power: 12
freq min 24

freq max 48

duty lock 1

stall protection (prot_stall) 3100

prot_temp 75

Prot_volatge: 3.3 per cell

Quick Optimization Tips

If you experience "cogging" (stuttering) under load: Slightly increase the Min Power or check your gear mesh to ensure there isn't mechanical binding.

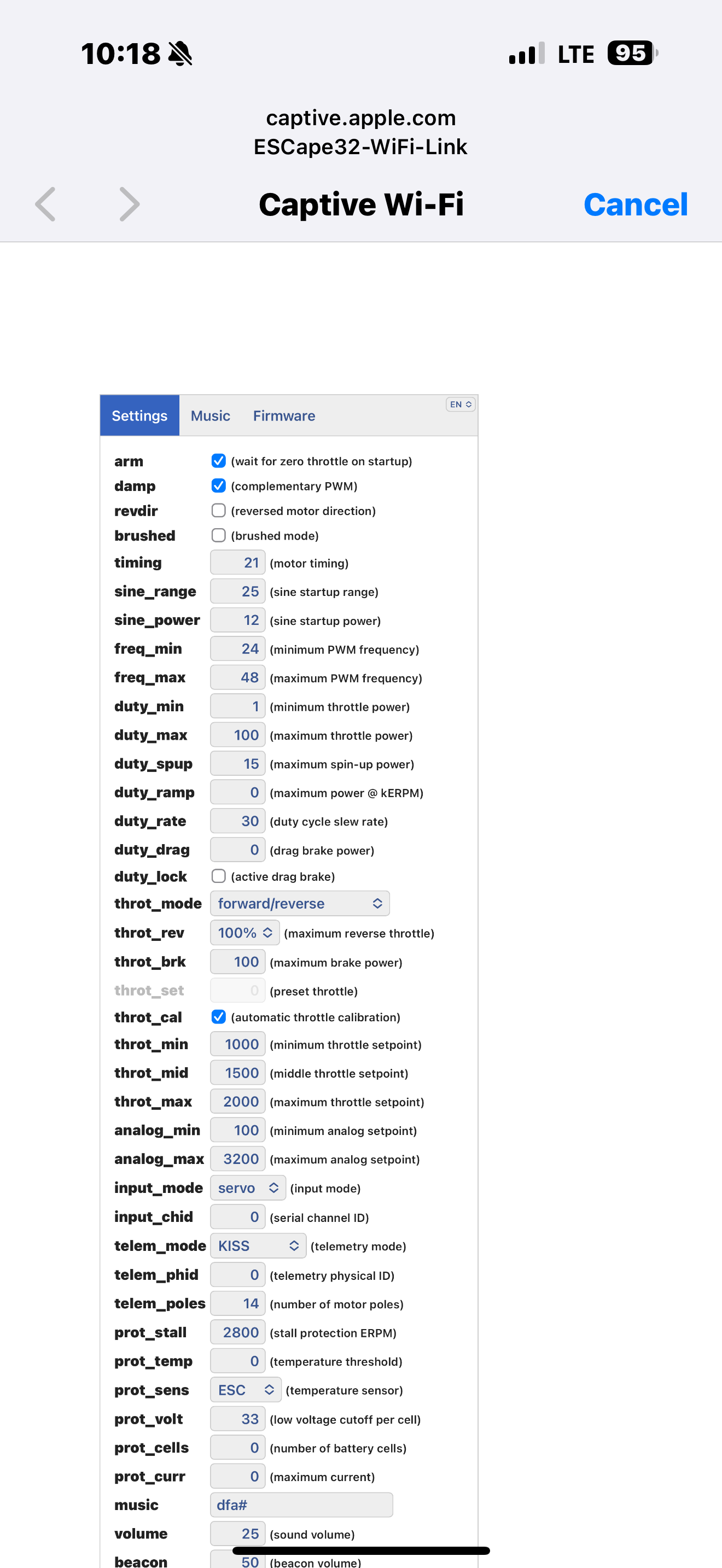

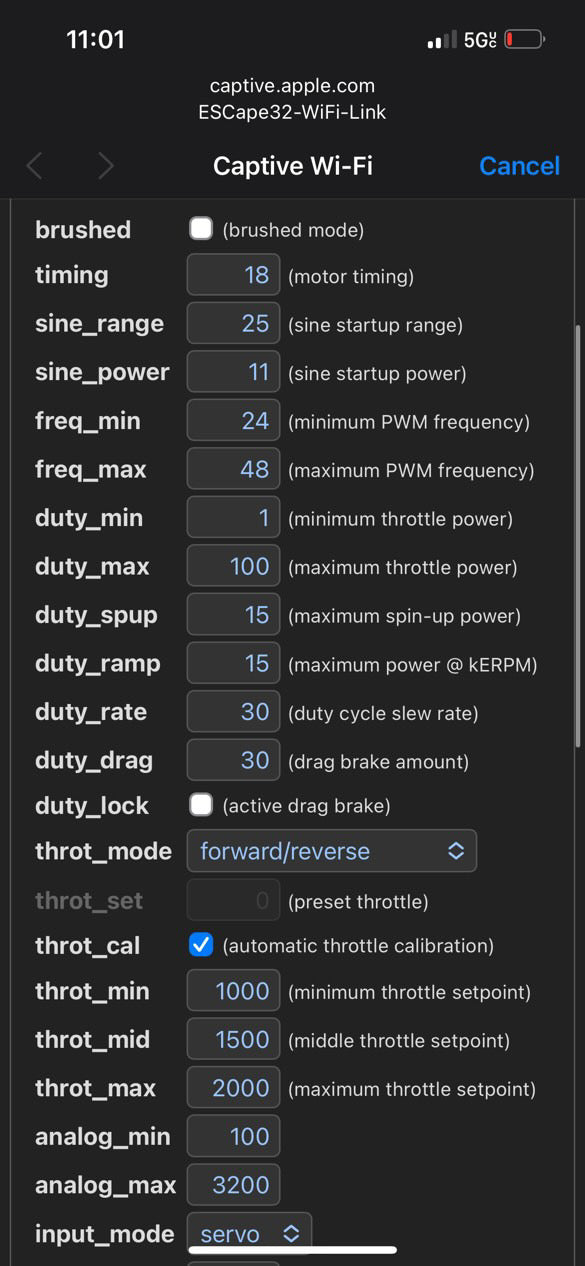

Mofo Nano BAM

To get the ultimate low-speed control and eliminate low-end stuttering, use these exact settings in your ESCape32 tuning app:

Motor Poles (⁠telem_poles⁠): ⁠14⁠

Timing (⁠timing⁠): ⁠16⁠

Sine Range (⁠sine_range⁠): ⁠25⁠

Sine Power (⁠sine_power⁠): ⁠11⁠

Gives the motor enough juice to push over rocks at a literal snail's pace. If the motor feels warm after a long run, turn this down to 9 or 10.

Startup Power (⁠duty_spup⁠): ⁠15⁠

Prot_stall 3200

Voltage Protection (⁠prot_volt⁠): 33

Mofo pancake motor:

The Quick Setup

Motor Poles: ⁠12⁠

Motor Timing: ⁠10 (Low timing gives you the best low-end torque and smoothness).

sine range 20

freq min 24

freq max 48

trottle mode forward/reverse for crawling

duty lock 1

Stall Protection (prot_stall) ⁠3000⁠ (This is the magic number that stops the motor from hesitating when it wedges against a rock).

Prot_temp 75

prot_voltage 33 (3.3v)

How to fine-tune it:

If you pull the throttle just a tiny bit and the motor shudders instead of turning, look for the Minimum Throttle Power (or startup power) setting. Bump that up a tiny bit at a time until the truck starts rolling perfectly smoothly.

BKTT New Icing Motor — ESCape32 Tune

Motor & Startup

• timing: 15 (balances torque and operating temperature)

• sine_range: 12(dedicated low-speed crawl band)

• sine_power: 12 (low-end creeping power)

• duty_spup: 15 (spin-up power off neutral)

PWM & Throttle

• freq_min: 24 (minimum PWM frequency in kHz)

• freq_max: 48 (maximum PWM frequency in kHz)

• duty_min: 1 (minimum throttle power)

• duty_max: 100 (maximum throttle power)

• duty_ramp: 0 (linear power ramp)

• duty_rate: 30 (duty cycle slew rate)

• throt_mode: forward/reverse (instant bidirectional control)

duty_lock: Enabled / Checked (active brake lock)

Protection Settings

• prot_stall: 3500 (stall protection ERPM threshold)

• prot_volt: 33 (3.3V per cell low-voltage cutoff)

• prot_cells: 0 (auto-detect battery cell count)

Quick Field Adjustments

• Launch Stutter: Increase sine_power or duty_spup slightly.

• Warm Motor: Dial sine_power down toward 8-10
