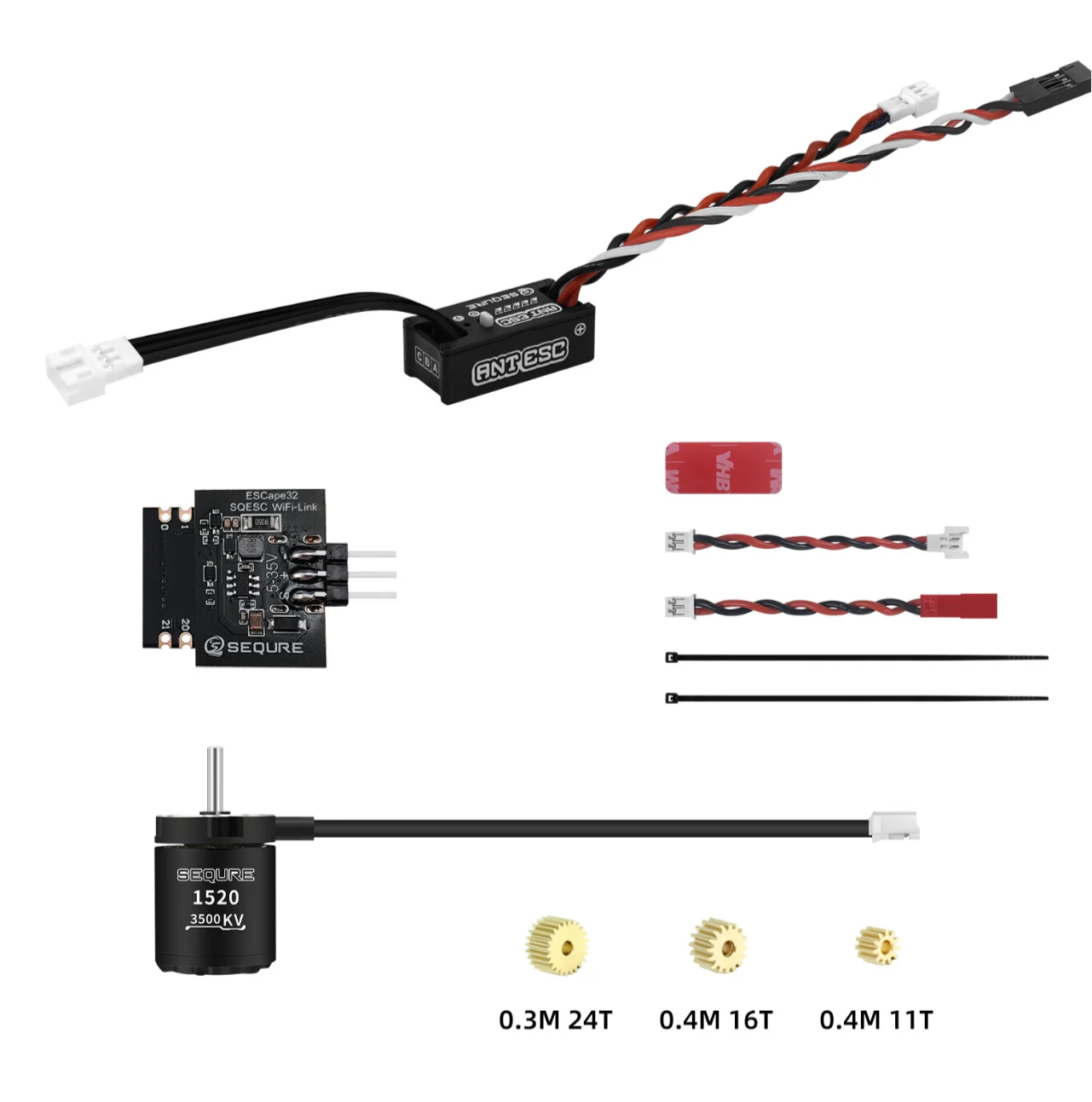

SEQURE ANT ESC & 1520 Motor 2-3S High Performance Outer Rotor Brushless Power Kit Small Size Suitable For 1/24, 1/18, 1/16 RC Crawler Car

SEQURE ANT ESC & 1520 Motor 2-3S High Performance Outer Rotor Brushless Power Kit Small Size Suitable For 1/24, 1/18, 1/16 RC Crawler Car

Regular price $55.00 USD
Regular price Sale price $55.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Product Description:

(1) SEQURE ANT ESC & 1520 is an outer rotor brushless power kit specially designed for 1/24, 1/18, and 1/16 climbing cars. Mini size perfectly fits the small-scale cars, which not disrupt the original car's counterweight and center of gravity balance.
(2) Sealed glue filling design for PCB and metal aluminum box radiator make it waterproof and dustproof, offering comprehensive protection.
(3) Features with high-quality bearings, hardened motor shaft, reinforced metal outer rotor, extra-soft silicone wire, high-temperature resistant magnets, and enameled wire, the 1520 motor has high efficiency, low consumption, and higher energy conversion.
(4) Upgraded electronic switch design, say goodbye to the wear and tear of traditional mechanical switches, easily start and stop with a press, with sensitive response and longer life.
(5) Intelligent parameter adjustment system, just connect to a mobile phone or computer at will to adjust various parameters such as motor timing, brake force, throttle mode, low voltage protection, over-temperature protection, etc. Freely adjust the performance of the climbing car to create a unique car.
(6) This ESC is equipped with a built-in 6V 3A BEC for high stable output, and a powerful steering engine for more decisive turning, more power.
(7) Plug and play, equipped with a variety of battery adapter cables to meet the needs of various car models on the market.



Parameters of Product:

Model

ANT ESC

Input voltage

DC 7V-13V(2-3S Lipo)

Continuous current (good heat dissipation)

50A

Maximum current (good heat dissipation)

100A

Signal protocol

Dshot (all), PWM, Oneshot, Multishot, etc.

Programming parameters

Support

Current detection

Support

RGB LED color light

Support

BEC

6V / 3A (continuous current)

Electronic switch

Single press to start up, long press to shut down

Wire specifications

Power cable (105mm), motor cable (70mm), signal cable (130mm)

Product size

32*15*11mm (excluding wire)

Product weight

16.5g (including wire)

Application scenarios

1/12, 1/16, 1/18, 1/24 models



Model

1520 Motor

Working voltage

2-3S Lipo

Number of slots/magnetic poles

9N12P

Output shaft diameter

2.0mm

Output shaft length

9mm

KV value

3500KV

Motor wire

20AWG 100mm,PH2.0-3P male connector

Mounting hole spacing

M2 screw holes, with spacings of 9mm/12mm

Product size

15.8*20.7mm(excluding wire)

Product weight

16.8g(including wire)

Application scenarios

1/16, 1/18, 1/24 RCs
