Big Kid Tiny Truck RC
RevvitRC APE32 50A ESC Bluetooth Adjust Parameters ESCAPE32 Firmware Can Work Through WiFi For 1/10 TRX4 SCX10 RC Crawler Car RevvitRC APE32 50A ESC Bluetooth Adjust Parameters ESCAPE32 Firmware Can Work Through WiFi For 1/10 TRX4 SCX10 RC Crawler Car WIF
RevvitRC APE32 50A ESC Bluetooth Adjust Parameters ESCAPE32 Firmware Can Work Through WiFi For 1/10 TRX4 SCX10 RC Crawler Car RevvitRC APE32 50A ESC Bluetooth Adjust Parameters ESCAPE32 Firmware Can Work Through WiFi For 1/10 TRX4 SCX10 RC Crawler Car WIF
Regular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

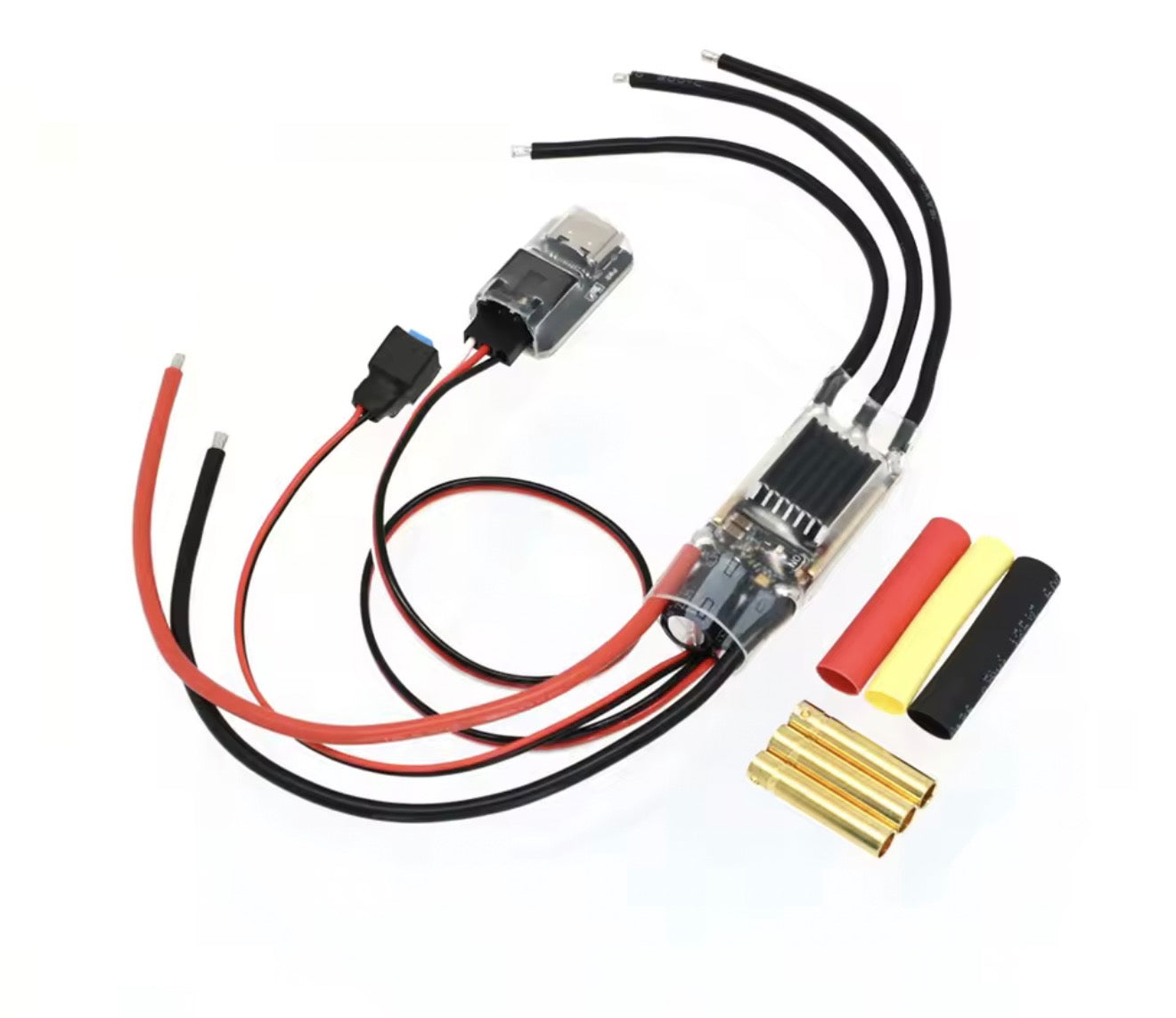

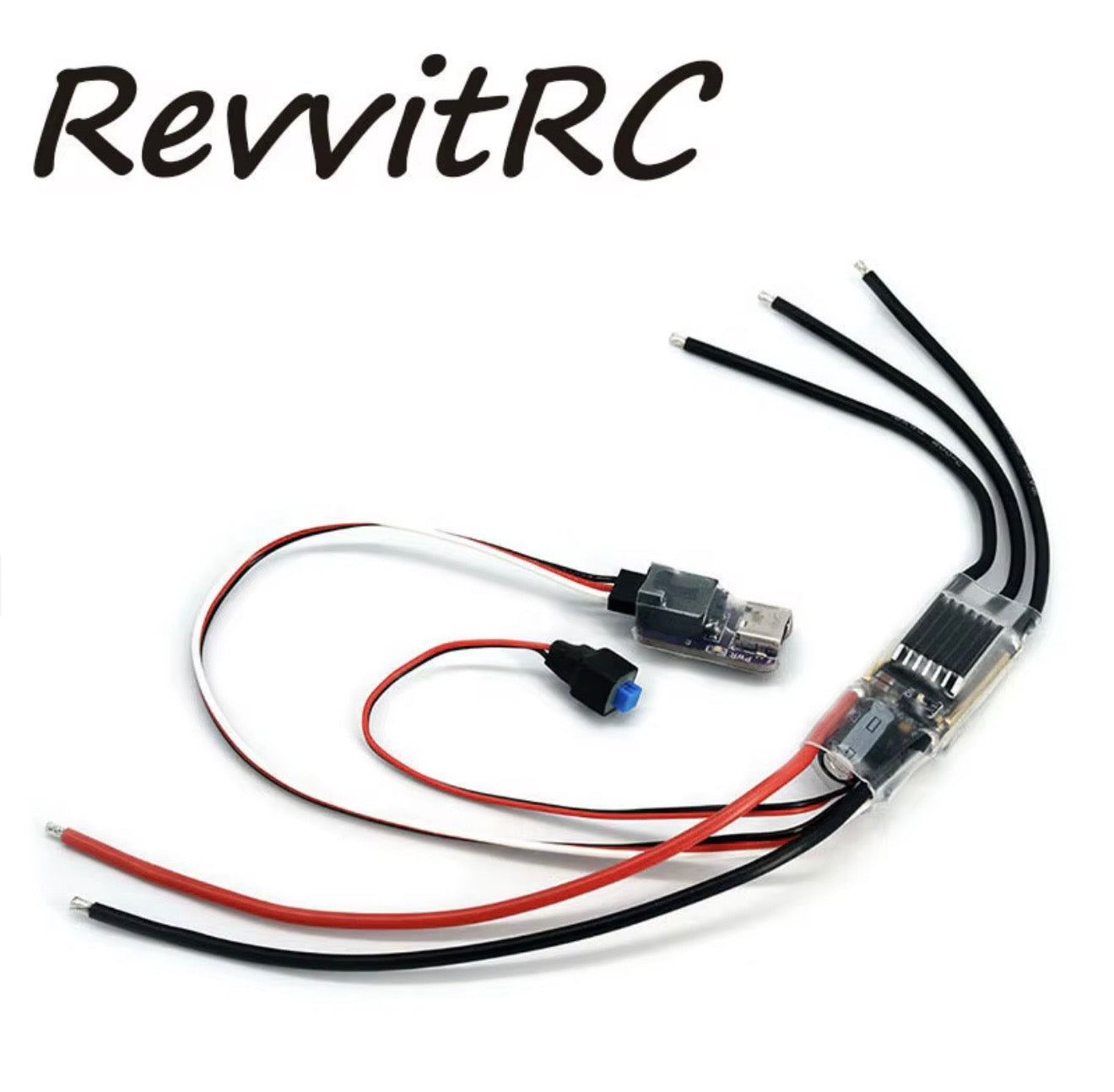

RevvitRC APE32 50A ESC Bluetooth Adjust Parameters ESCAPE32 Firmware Can Work Through WiFi For 1/10 TRX4 SCX10 RC Crawler Car
RevvitRC APE32 50A ESC Bluetooth Adjust Parameters ESCAPE32 Firmware Can Work Through WiFi For 1/10 TRX4 SCX10 RC Crawler Car
WIFI link is an embedded configurator based on ESP32, suitable for ESCape32 firmware that can work through Wi-Fi. It serves as a
Wi-FiAP called ESCape32-WiFi-Link for external devices to connect. The configuration window will automatically pop up, but if it
does not pop up or its functionality is limited, simply navigate to escape 32. local or 192.168.4.1 and open it in a Web browser
after establishing a Wi-Fi connection.
The main highlights are as follows:
* Real time configuration and firmware updates.
* RTTTLmusic is transparently converted to an internal format.
* Any device withWi-Fi and a web browser can be used (only one device can be connected at a time).
The APE32 Bluetooth adjustment parameters are configured by default before leaving the factory and can be used directly. There are
two power supply methods: one is to plug the parameter adjuster directly into the ESC when it has a BEC output of 5-10V, and be
careful not to plug the S and G positions incorrectly. The other is to use TYPEC power supply of 5-10V. Insert the ESC without BEC
output into the DuPont interface and pay attention to the signal S and negative G positions.
Adjust for climbing bikes
1The following general methods can be used for adjustment:
* Reset the settings to default values.
* throt_modeEnable bidirectional throttle by setting it to 1 (forward/reverse).
* Ensure that the motor operates well in trap mode. In certain special circumstances, you may need to adjust the motorPWM
frequency and/or other settings.
* By enabling the sine start modesine_range.
* Set the required power level for usesine_power.Please use with caution as higher values may cause overheating.
* Increase stall protectionERPM threshold，prot_stallUntil the motor obtains sufficient power boost，In order to smoothly
transition between sine start and trap mode.This value should not be too high (mostly 2200-2800)，To maintainsine_powerLow
position without losing step.
* prot_tempAlternatively, enable temperature protection by setting it to around80.
* duty_dragIf necessary, set up the use of resistance brakes.
Remote control car calibration
The proportional brake mode is designed for RC cars. In this mode, the proportional motor brake is activated the first time the
throttle is reversed.
General Steps:
* Resets the settings to the default values.
* throt_modeEnable proportional braking mode by setting to 2 (forward/brake/reverse).
