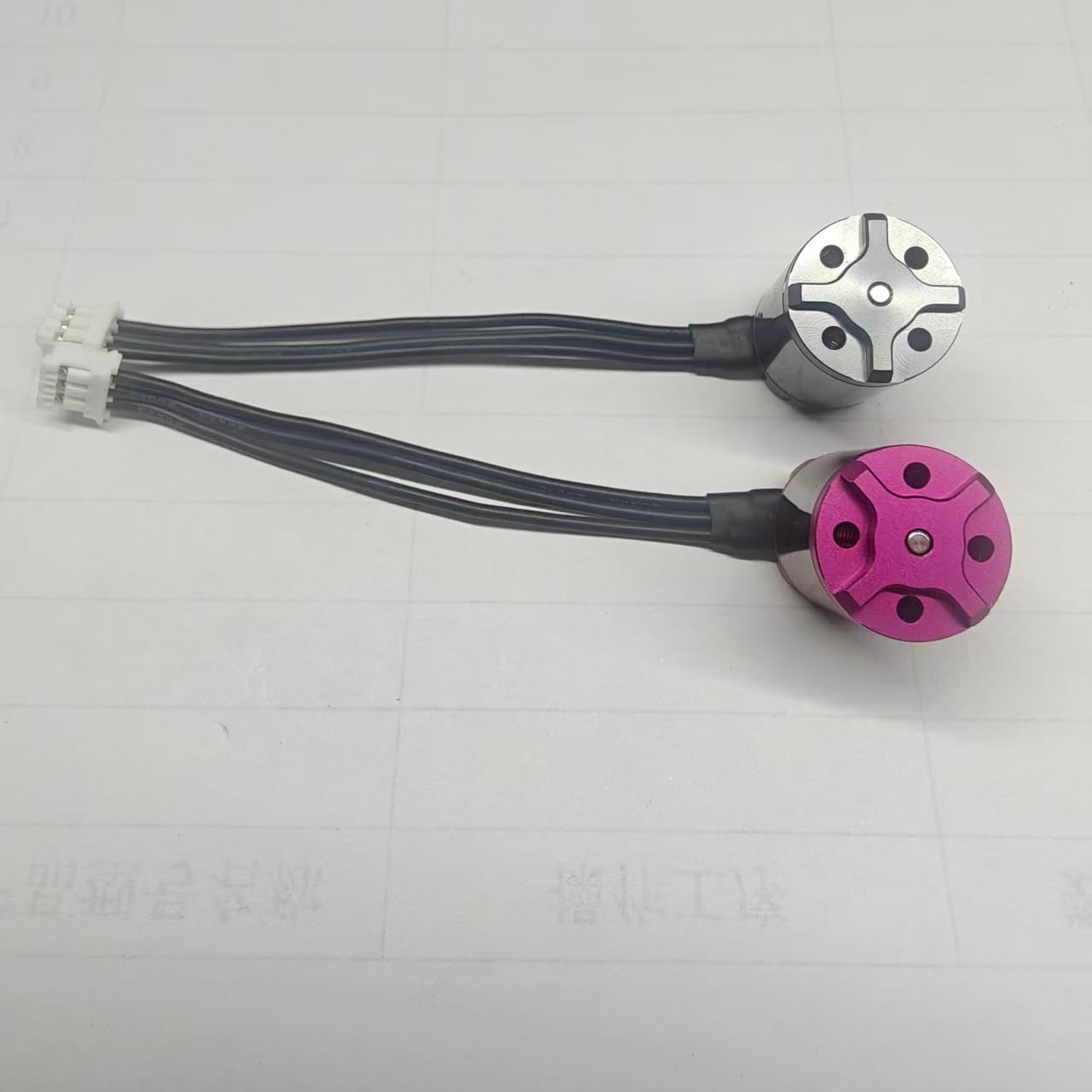

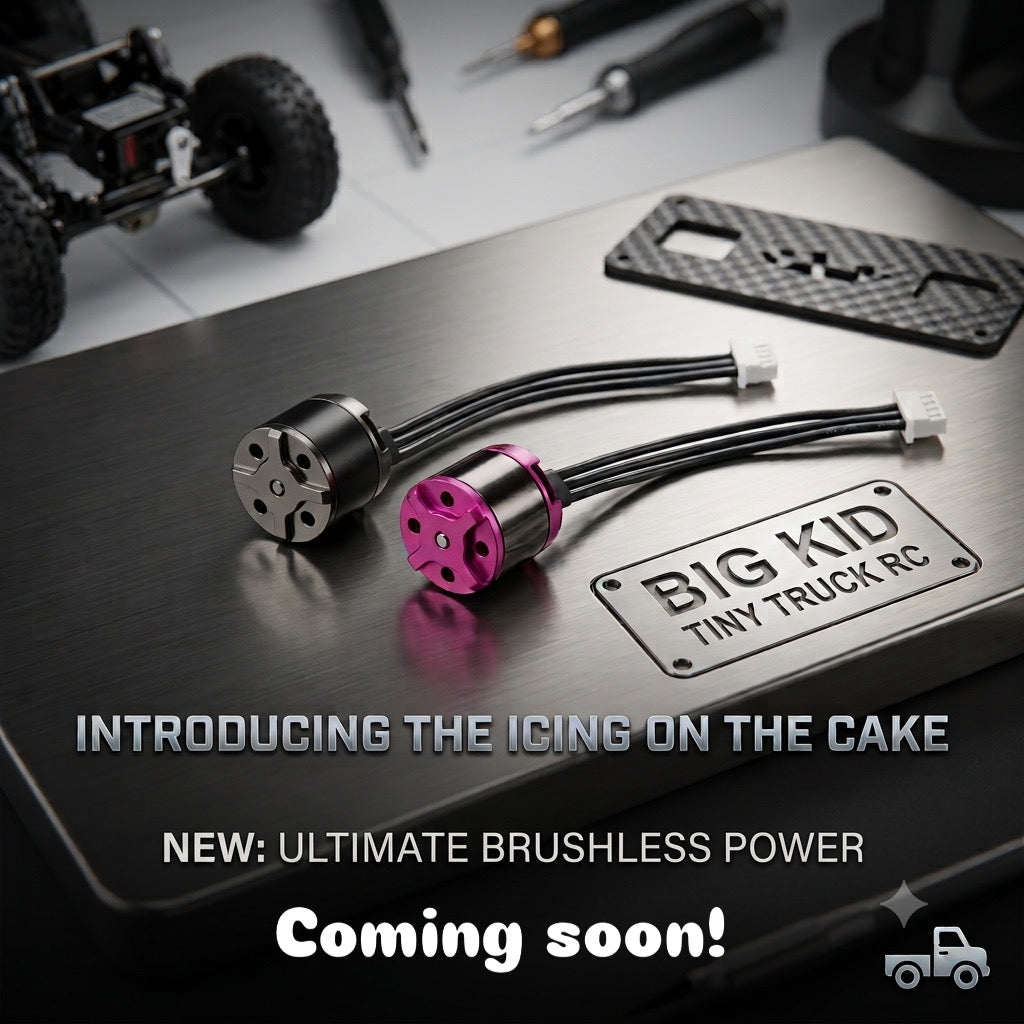

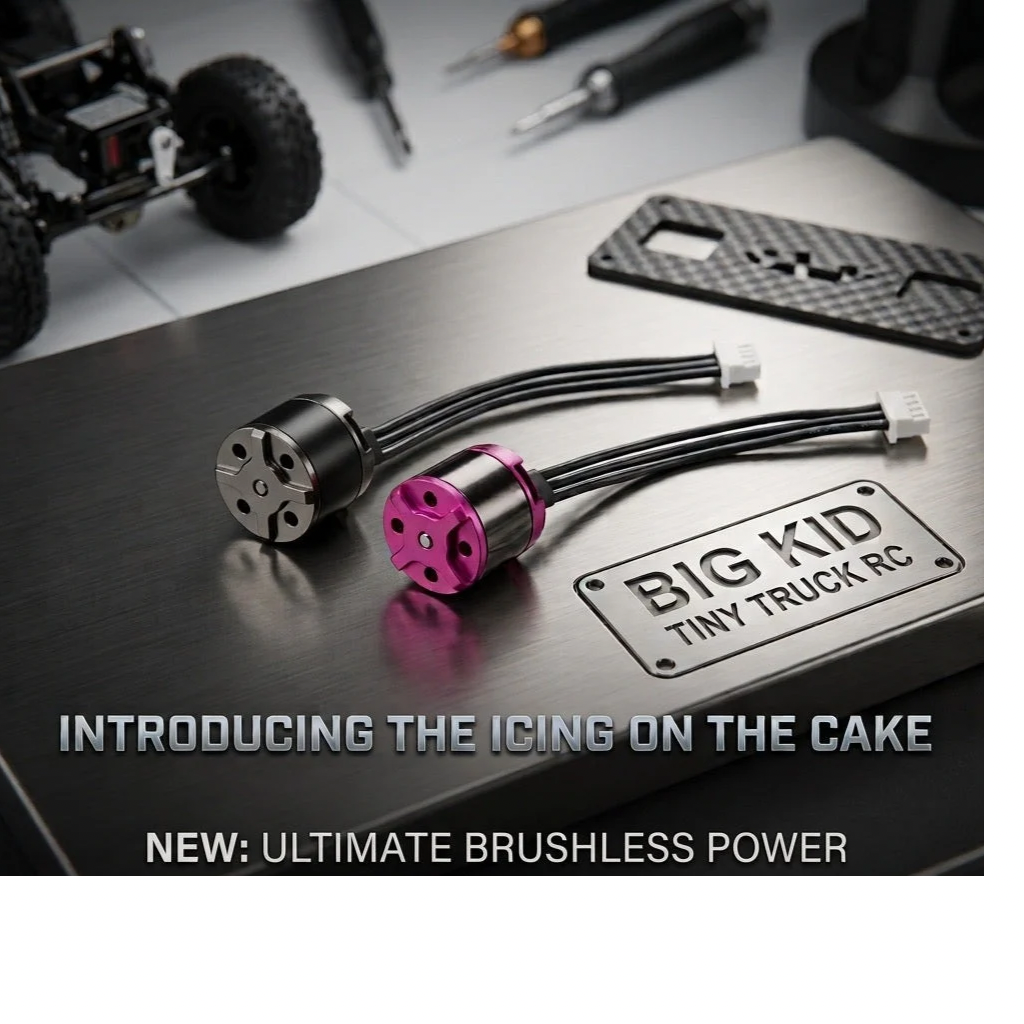

Icing brushless motors (3500K) steel pinion option requires 12mm motor mount.

Take your micro crawler to the next level with the BKTT Icing Motor. Designed for ultimate low-speed control and reliable power, this compact 3500KV motor delivers smooth, precise performance when navigating tough terrain. Built to fit popular builds while keeping weight to a minimum, it is the perfect upgrade to top off your setup.

(steel pinion version has 2 set screws, one is an extra (remove) or run it with 12mm mount to Allow smoother rotation ( set screw size is .9 Allen)

Overview & Highlights

• Smooth Low-Speed Control: 12-pole, 9-slot design ensures refined low-end startup and predictable throttle response on technical trails.
• Versatile Power Options: 2S to 3S LiPo capable, giving you the flexibility to tune speed and torque for your specific setup.
• Lightweight & Compact: Weighing just 15.5 grams with a 15.8mm diameter, it fits cleanly without adding unwanted bulk to your chassis.
• Flexible Mounting: Features a 9mm and 12mm mounting pattern designed to accommodate slotted all motor mounts.

Technical Specifications

• KV Rating: 3500KV
• Pole & Slot Count: 12 Pole / 9 Slot
• Voltage Range: 2S- 3S LiPo capable
• No-Load Current (A / 7.4V): < 0.7A
• Internal Resistance: 180m 3%
• Idle Speed (RPM/V): 25,900 @ 7.4V / 38,850 @ 11.1V
• Motor Dimensions: 15.8mm Diameter -  20.5mm Length
• Shaft Diameter: 2mm ( also has flat slot for Set screw style gear
• Weight: 15.5g
• Mounting Pattern: 9mm/12mm (fits all motor mounts)
• Mounting Hardware: M2 thread 3mm deep
• Wire Harness: 22 gauge
• Wire Length: 75mm
• Connector Type: PH2.0 3-Pin
• this is a in-house design, custom shaft, and casing. We designed this using a flat slotted 2 mm shaft to accommodate both press on and set screw style gear

 BKTT 90 day warranty:

BKTT warrants the icing to be free from defects in materials and workmanship for a period of 90 days (3 months) from the original date of purchase.

What Is Covered

During the warranty period, BKTT will, at its sole discretion, replace or credit any icing found to have a manufacturing or formulation defect under normal and intended storage and use.

What Is Not Covered

This warranty does not cover damage or failure resulting from:

• Contamination, dropping, or abuse
• excessive humidity, or environmental damage
• Melting or separation caused by excessive heat

To make a warranty claim, customers must provide:

• Proof of purchase from BKTT or an authorized distributor.
• A description of the issue (including batch or lot number, if applicable).
• Photos or videos showing the problem, if requested.

BKTT may request that the icing be returned for inspection before approving a warranty claim.

Warranty Limitations
