BKTT32 30a Cake-Pop ESC using the amazing open source escape 32 firmware . This Ultimate Powerhouse for Your Micro Rig (2-4s without external cap) (5-6s with added 470uf cap) featuring our AFP.

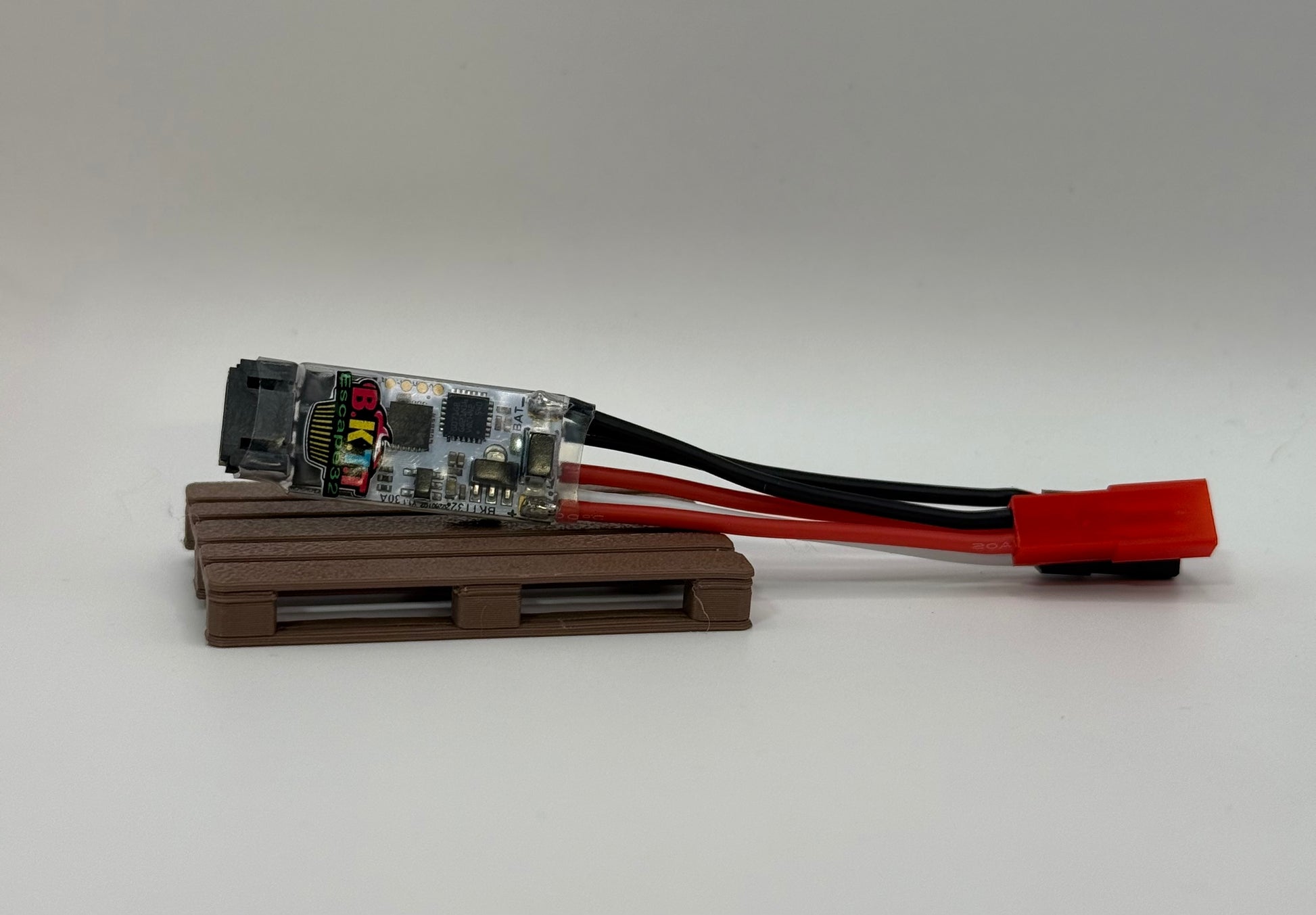

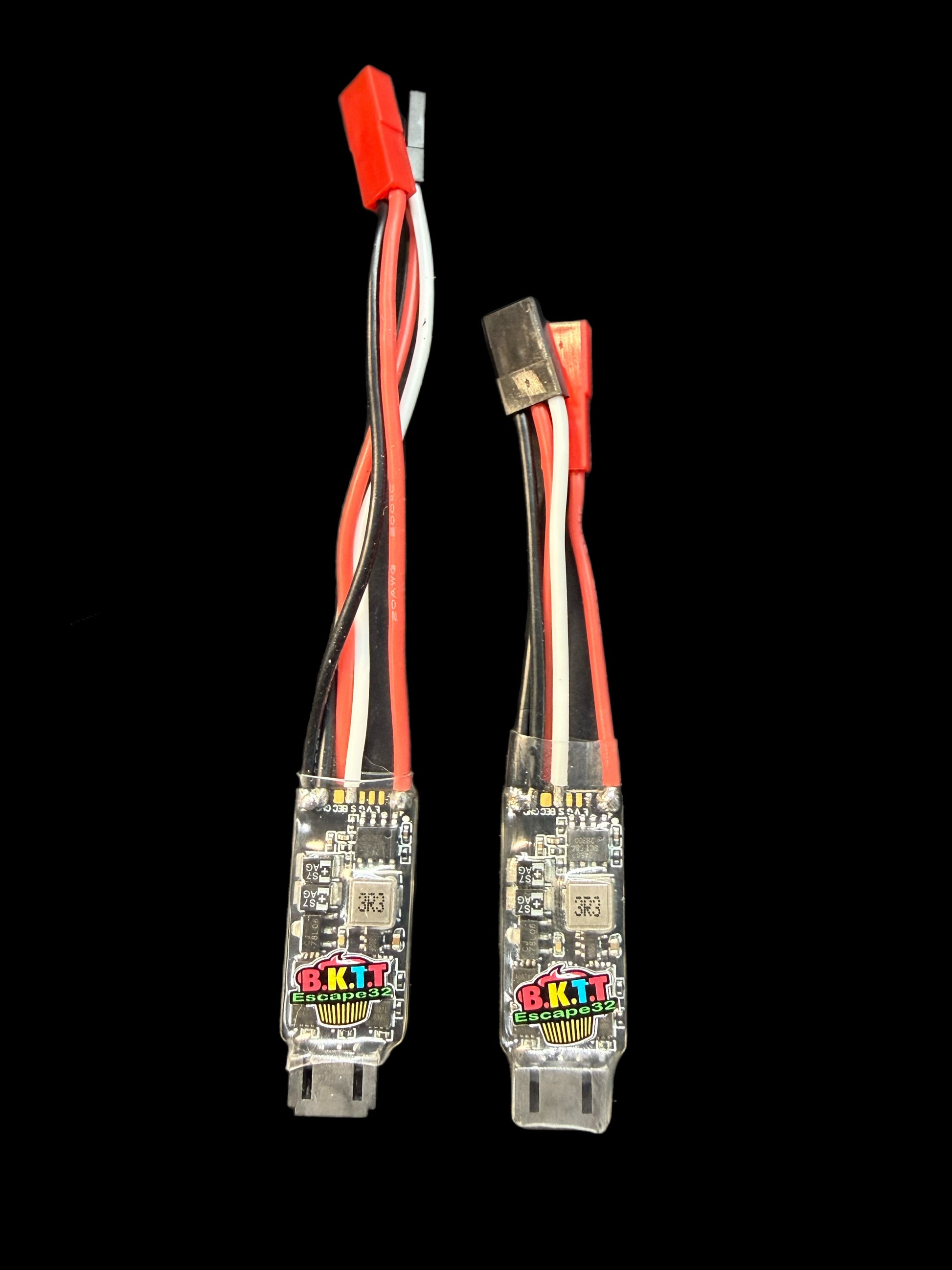

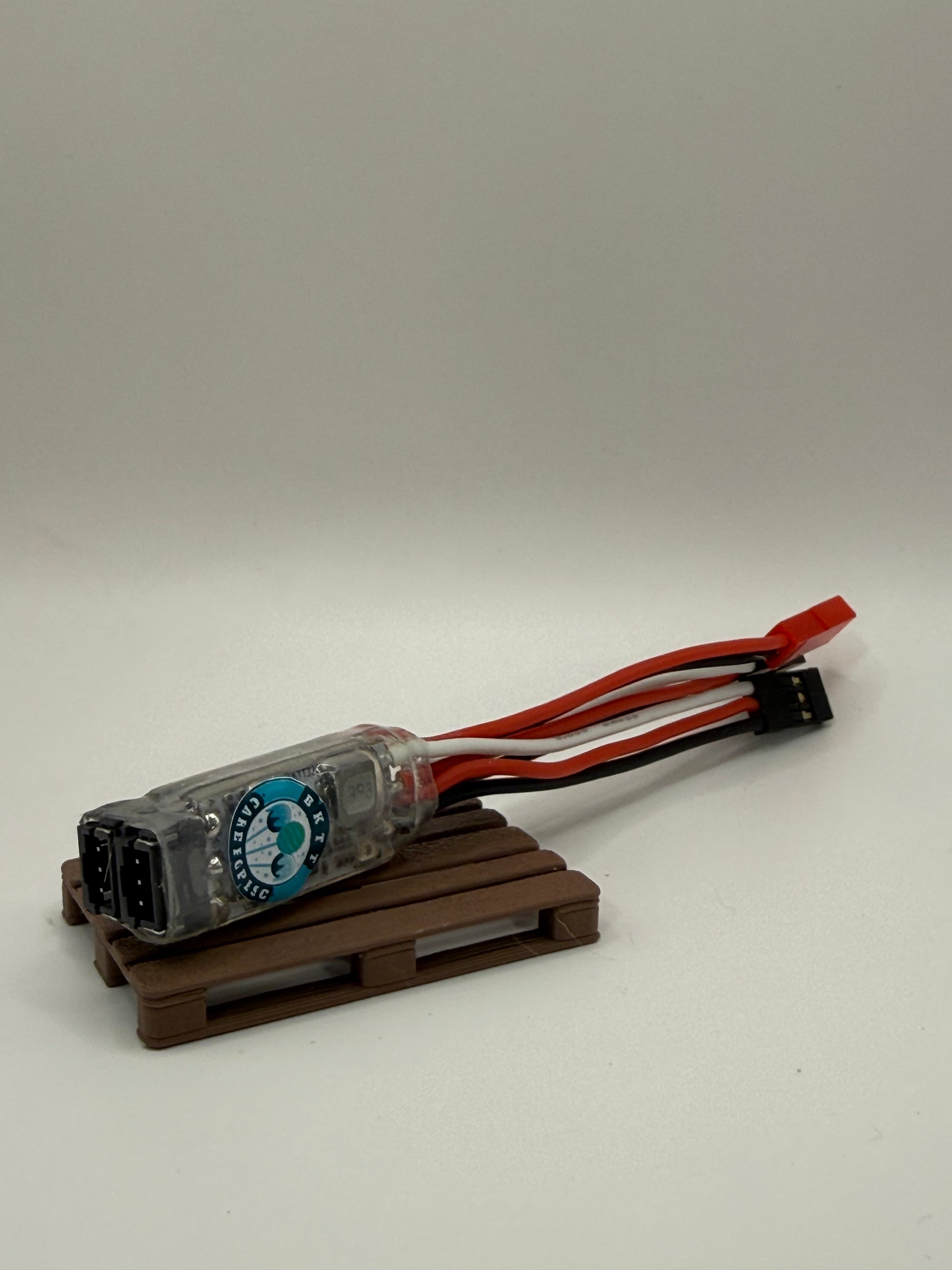

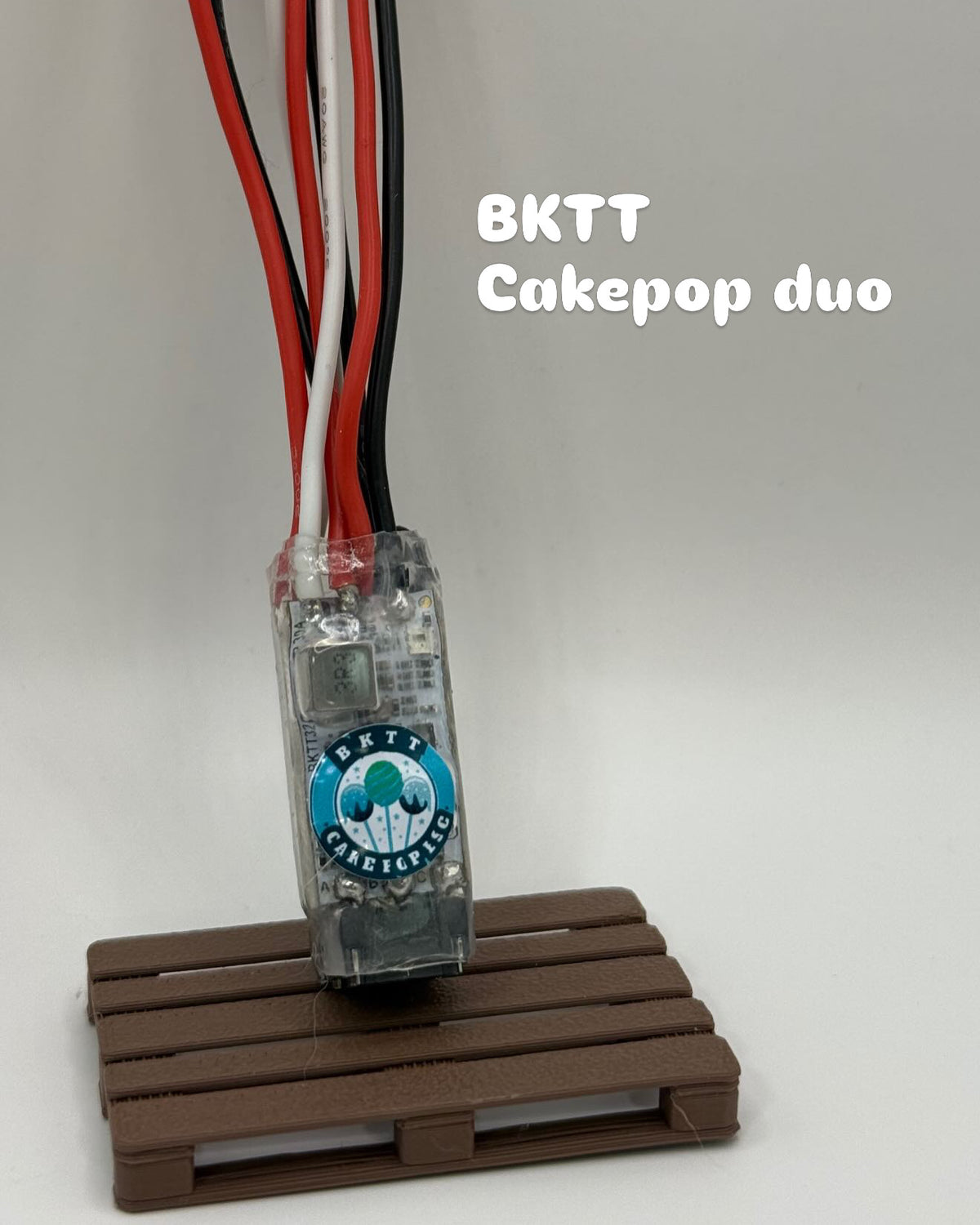

BKTT32 Cake-Pop ESC: The Ultimate Powerhouse for Your Micro Rig

Experience unmatched control and "buttery smooth" performance with the BKTT32 Cake-Pop ESC —an in-house, custom-designed masterpiece engineered specifically for the tiny truck community. This isn’t a knock-off; it is a high-performance, precision-built solution designed to dominate extreme terrain.
Whether you are running brushless or brushed setups, the Cake-Pop ESC brings professional-grade power management to your micro crawler. By leveraging the advanced ESCape32 firmware we’ve created a board that offers industry-leading response times and incredible slow-speed control, essential for technical lines.

 Key Features:
In-House Engineering: A custom-designed schematic built for reliability and peak performance.
Advanced Protection:  Features advanced back-feed protection on both the input and output, plus TVS diode anti-arching and parasitic voltage spike protection.
Power & Capability: Boasting a 30A continuous rating with a 50A burst, giving you the extra headroom needed to push your rig to the limit.
Adjustable BEC: Integrated 5A continuous BEC with user-selectable output (5.5V/6.5V/7.4V/8.4V), easily controlled via the Wifi-Link.
Smart Features:
Cross-Platform Wifi-Link:** Simple "Plug n' Play" access for configuration and tuning on any device.
Customization: Program your own startup tones, throttle profiles, and drag brake settings.
Versatility: Supports both sensorless brushless and brushed modes, including specialized sinusoidal modes for ultra-smooth crawler control.
Built-in Aesthetics: On-board color-changing LED options to match the style of your build.

Technical Specifications:
MCU: STM32G071
Firmware: ESCape32 Rev. 14.5 (BKTT32 custom)

Voltage: 3-4s (5-6S compatible with external 470uF cap)

Current: 30A (50A Burst)
Dimensions: Compact 26mm x 12.2mm x 6.2mm form factor
Connections: Available with PH2.0, JST, or XT30 battery plug options; hard-mounted PH2.0 3-pin motor plug.
Telemetry: Supports KISS, KISS auto, iBUS, S.Port, and CRSF.

BKTT Cake Pop ESC – Limited 30-Day Warranty

At BKTT, we stand behind our gear. We want to make sure your Cake Pop ESC sweetens your build without any unexpected bitter surprises. That is why every authentic BKTT Cake Pop ESC is covered by our Limited 30-Day Warranty against defects in materials and manufacturing.

What is Covered?

This warranty covers the original purchaser for exactly 30 days from the date of delivery or purchase (whichever comes first).

Components that fail due to a verifiable manufacturing defect.

Flaws in materials or assembly from the factory.

What is NOT Covered?

Because high-performance electronics operate in demanding environments, this warranty does not cover issues resulting from user error, external forces, or typical wear-and-tear. Specifically, we cannot cover:

Water or physical damage: Crashes, hard impacts, or exposure to moisture/liquids.

Improper installation: Reverse polarity (plugging the battery in backward), incorrect soldering, short circuits due to poor insulation, or improper gearing/motor pairings that overload the ESC.

Modifications: Altering the factory wires, removing the heat shrink/casing, or flashing unauthorized firmware.

Exceeded Limits: Running voltage or current beyond the specified limits of the Cake Pop ESC.

⚠️ Important Note: Ground testing your electronics before your first full run is highly recommended. 99% of manufacturing defects show up the very first time an ESC is powered on.

How to File a Claim

If your Cake Pop ESC genuinely gave out due to a factory defect within your first 30 days, we want to make it right. Please reach out to us  and we will get it squared away. We do in-house repair for all customers (order number needed & proof of purchase)
