Big Kid Tiny Truck RC

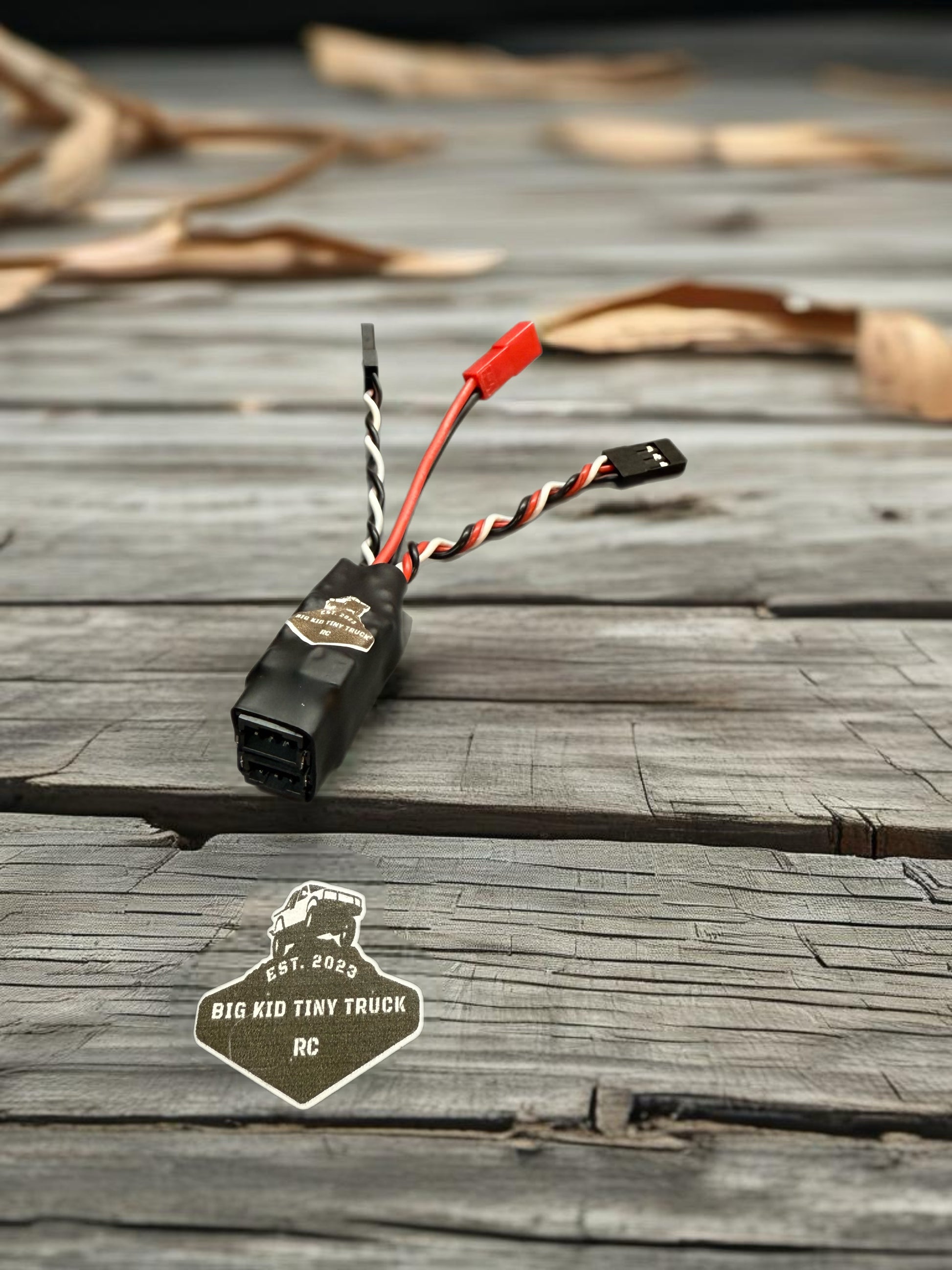

BKTT ESCape32 CUPCAKE duo ESC. Boasting 2 ESCs and 2 5A BECs for those dual motor and MOA setups

BKTT ESCape32 CUPCAKE duo ESC. Boasting 2 ESCs and 2 5A BECs for those dual motor and MOA setups

$100.00 USD
$100.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Battery connector

WiFi linker is needed for making changes! basic tune set. These are not plug-in play. More tuning is required for certain motors or gear changes. The tune set by us for shipping works for a lot of motors and we have tunes but they’re not always 100%.

Cupcake 25a ESC using the new Dedicated ESCape32 board designed for crawlers and powered by NEOXIC firmware and has a stacked 5A adjustable BEC via the WIFI linker to accommodate 4ws with power hungry servos. These use the latest Escape32 FW version rev14.2 has more options of tuning than am32 when paired with the WIFI linker! Also available on the store. Each ESC is preloaded with the latest firmware and set to a basic tune! these ESCs will handle 2 - 6s lipos ( 5-6s requires external cap of 470uf!

Recommended RADIOS’s

Noble 4

Futaba 7pxR

Futaba 10px

Futaba 4pm

ESC features:

  • adjustable 5A BEC via tuner for those hungry servos
  • BEC options 5A adjustable to 5.5v 6.5v 7.4v and 8.4v
  • Supports 2 - 6s operation (2 - 4s is common)
  • Burst current 50A
  • better heat dissipation due to added copper infill in between the layers.
  • customizable startup music
  • Proportional brake drag brake
  • sine start up mode, brushed mode
  • Dimensions - Size: 28mm x 12mm x 10mm



These can run brushed mode! Once the brushed box is selected the unused settings will be grayed out. Make sure duty ramp is 0.  Picture is above for motor plug orientation.  Middle pin will always be for the red lead





(please allow 24 to 48 hours for production and response time due to demand)



ALL ESCS ARE SHIPPED WITH A BASIC TUNE. They will require further tuning via WIFI linker sold separately in my store.

Any changes to the ESCs wiring or ESC itself other than firmware updates will void the warranty! we provide a  90 day hardware warranty against hardware defects! Unfortunately we cannot warranty the firmware as it is open source. Any changes or modifications to the ESC or water damage does void the warranty.
https://github.com/neoxic/ESCape32/wiki/TipsAndTricks
