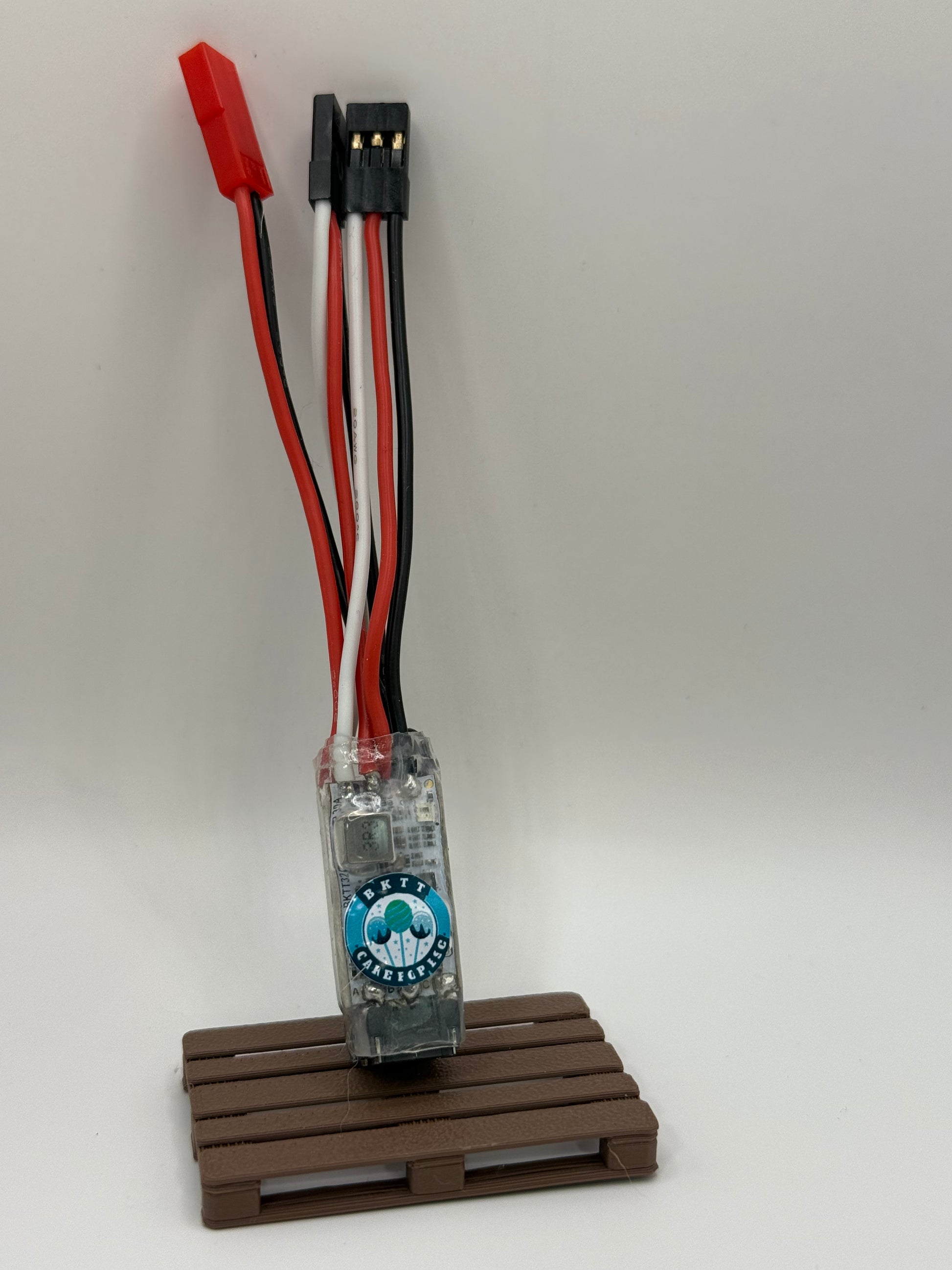

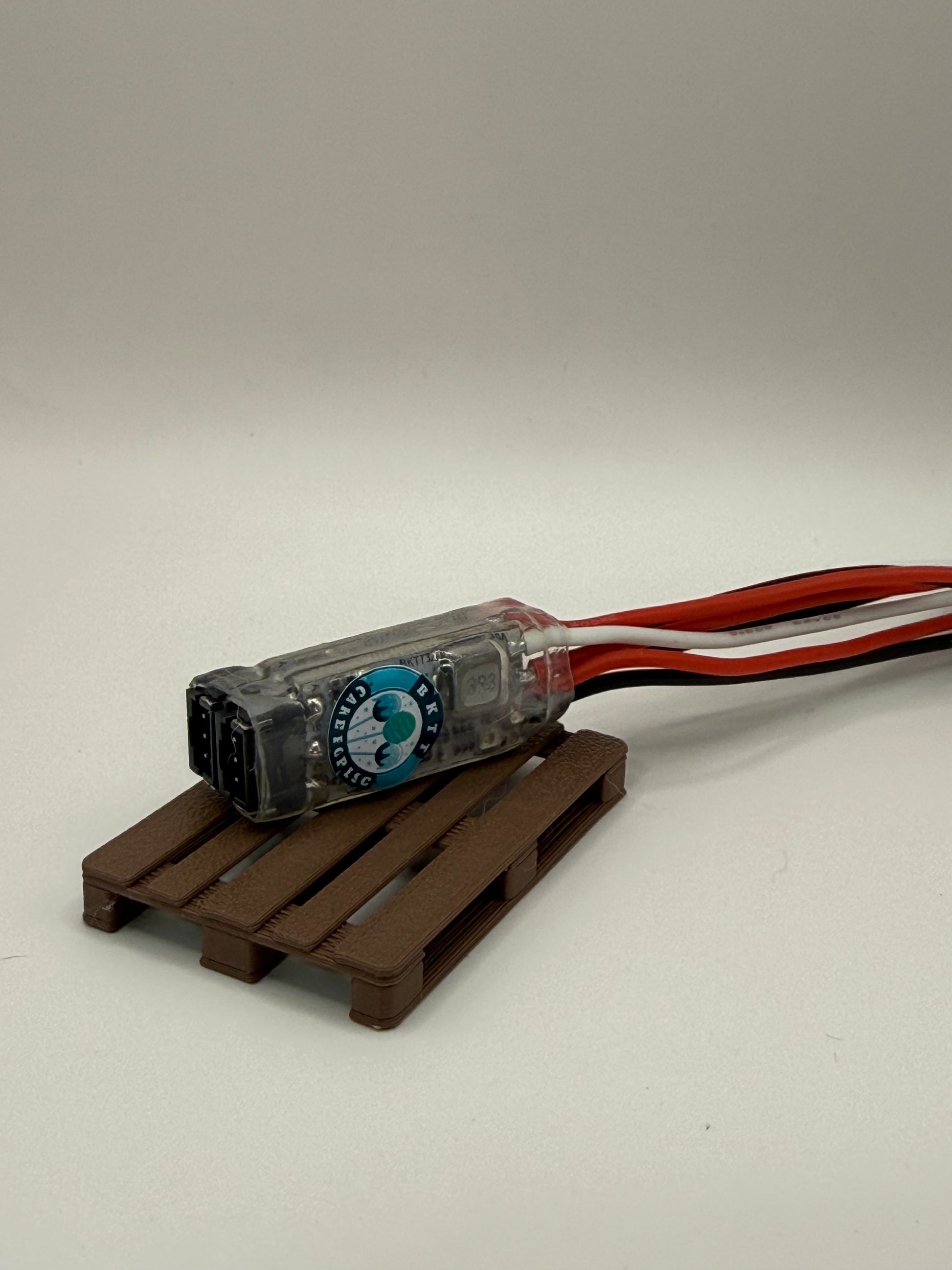

BKTT Cakepop duo ESC

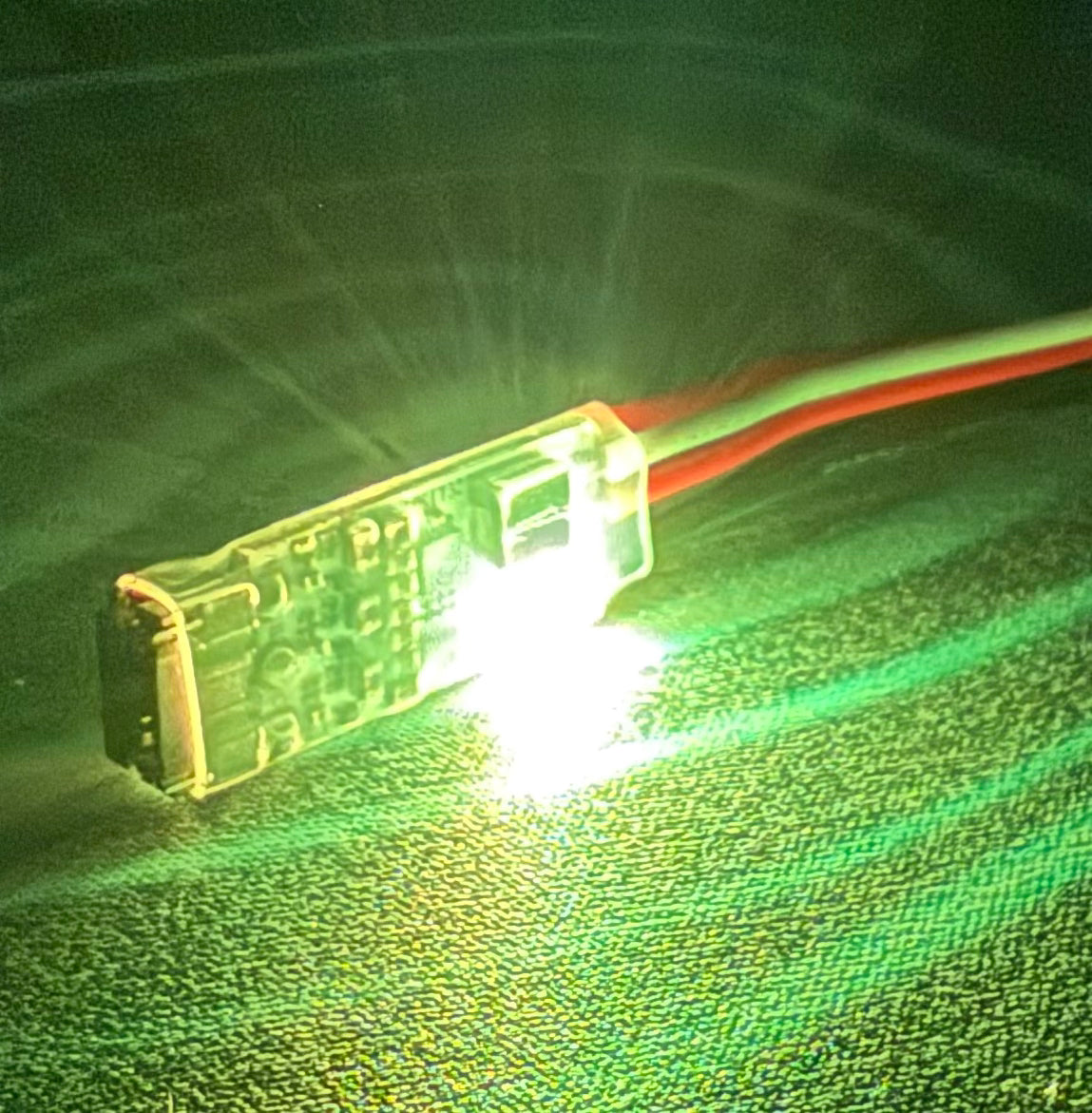

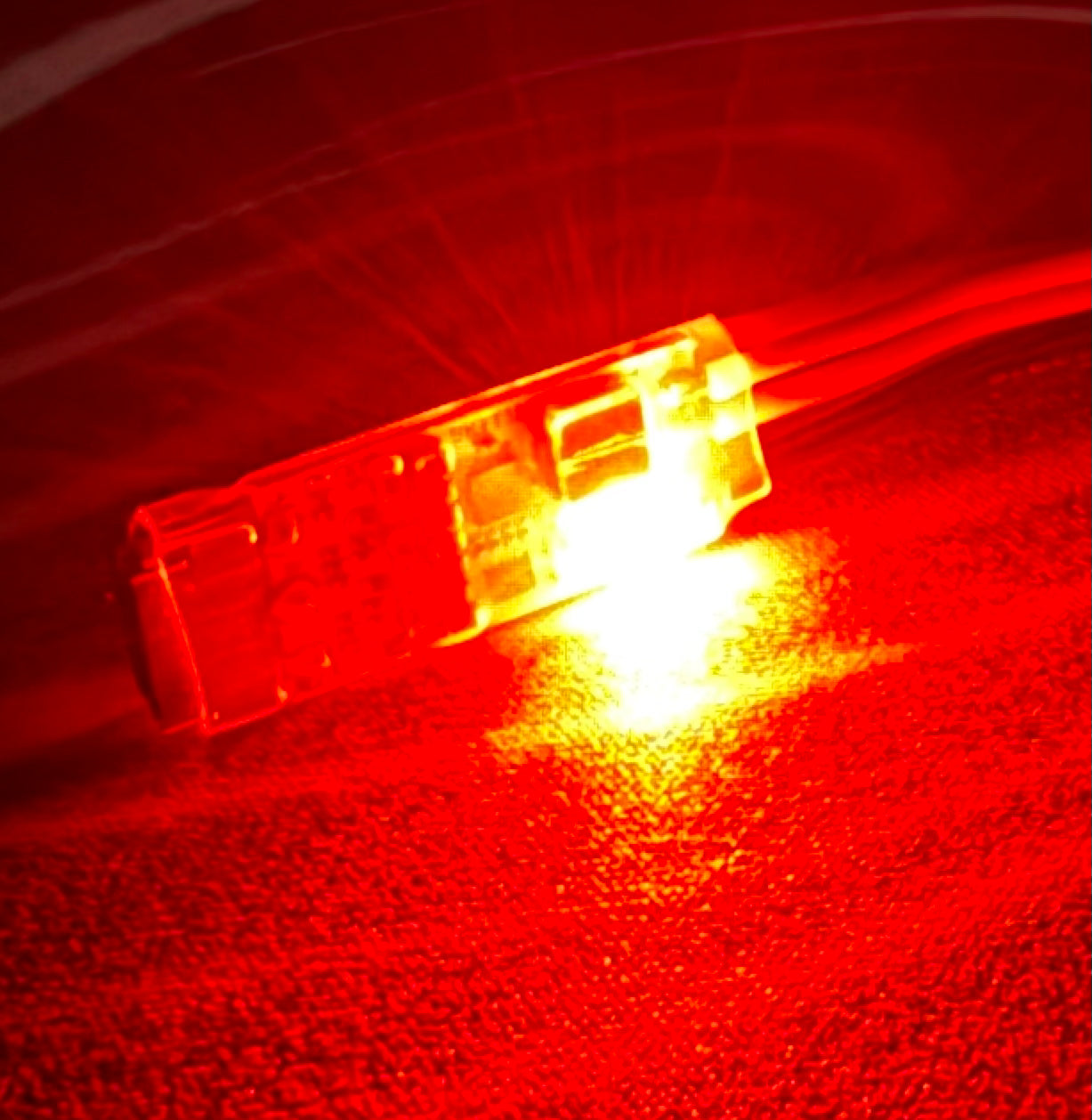

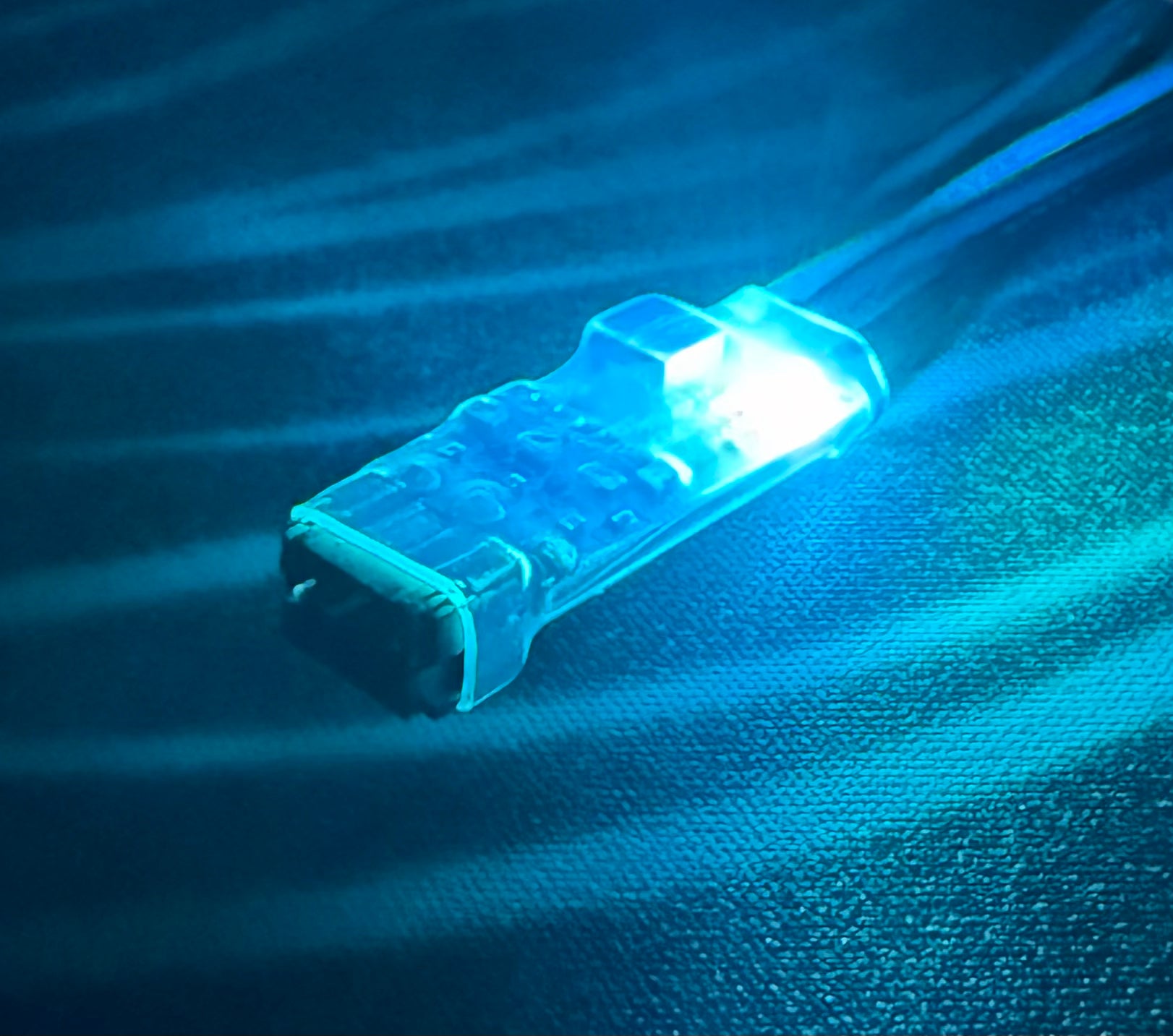

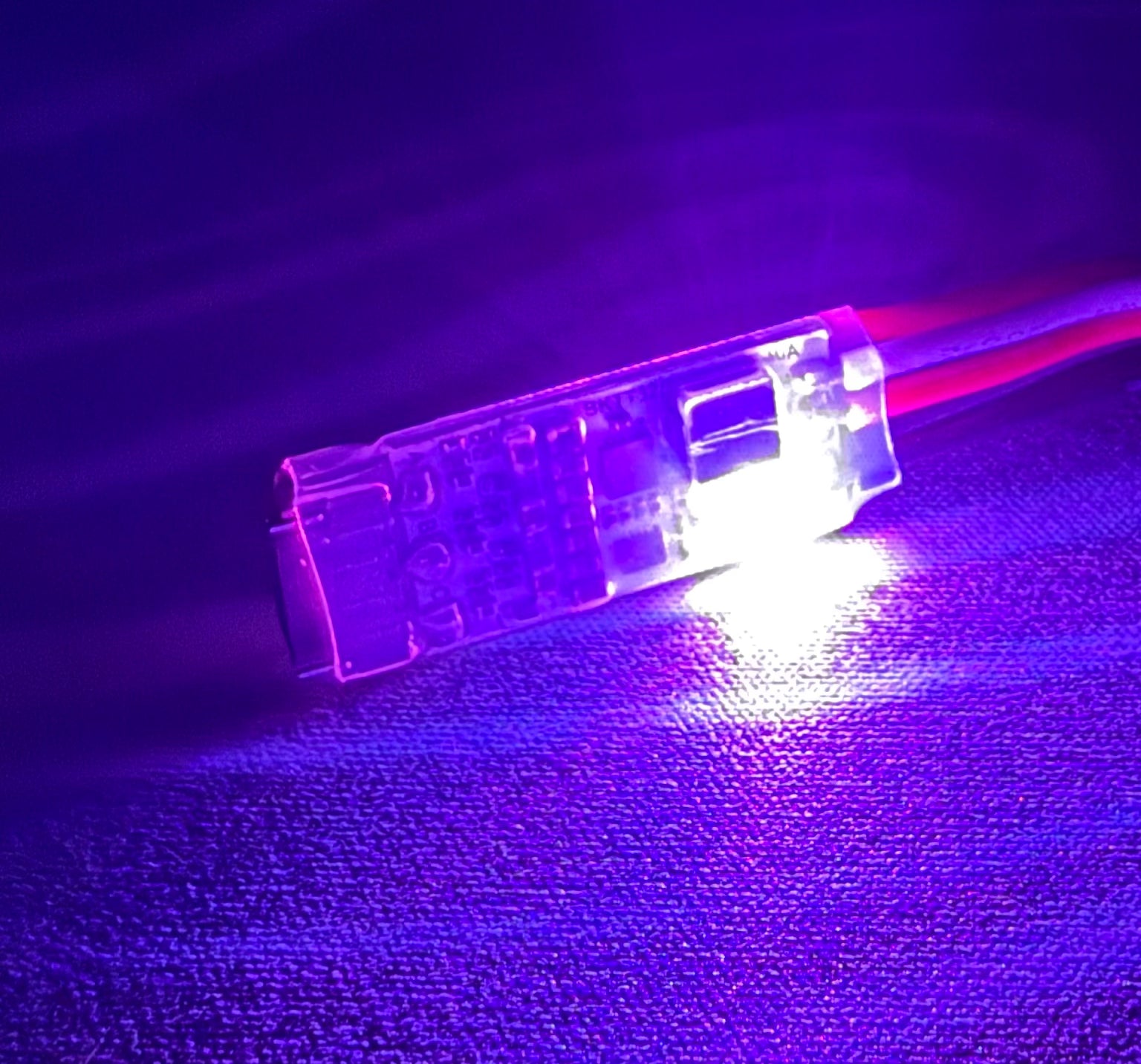

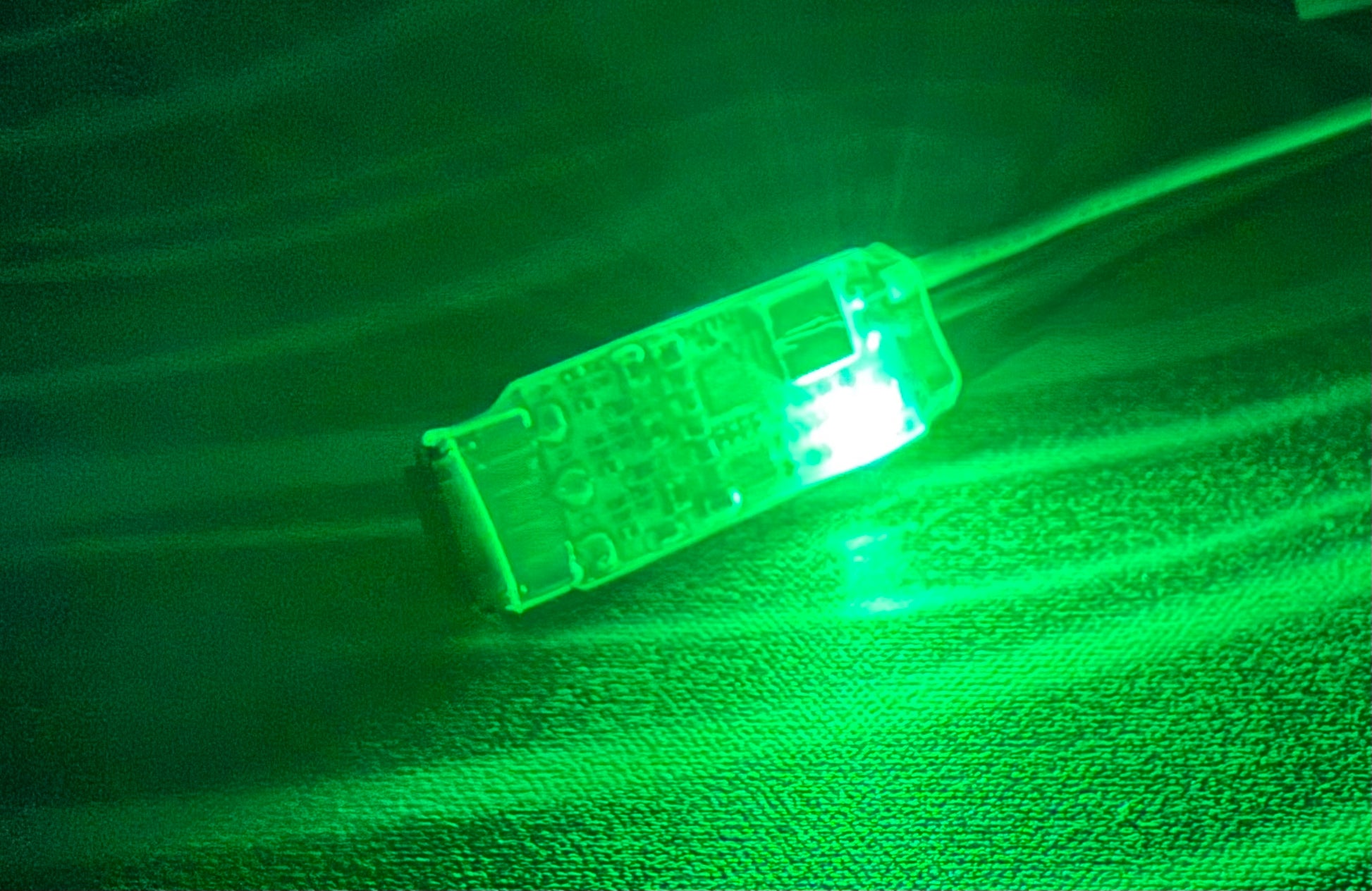

Welcome to ourBKTT32 dedicated ESC boasting 5a firmware adjustable BEC for brushless/brushed setups. Built in LED with color changing options brining you the best in protection. This is our own in-house designed Schematic. These cake pop ESCs are a powerful design bringing you tiny truckers the buttery smooth performance and control thanks to the combination of top of the line  components and of course the amazing escape32 firmware. Built-in on board Is something that we’ve added to make our board Top notch is the use of advanced back feed protection. Our boards have protection now on the input and the output. 30 amp With 55 amp burst allows you guys to have a little more push and head room For Extreme terrain might throw at it wether it’s a competition or just out for a day crawl… we have you covered!

Each board is Built with love And precision.

Specs:
• MCU: STM32G071 x 2
• Firmware: ESCape32 Rev. 14.5 BKTT32 - available on GitHub under BKTT32
• Voltage: 2-6S (5-6S use external 470uF cap)
• Current: 30A (60A Burst)
• Sensors: voltage
• BEC: 5.5/6.5/7.4/8.4V 5A continuous
• Size: 26mmx 12.2mm x 6.2mm board diameter.

Features:

• Cross-platform Wifi access on all devices
• Simple "Plug n' Play" access thru WIFI-Link
• Integrated WIFI-Link controllable BEC voltage
• PH2.0, JST, & XT30 Battery Plug Options
• Hi-performance ESCape32 Firmware
• Hard-mounted PH2.0 3pin Motor plug
• Custom programmable startup tones
• Future-proof WIFI-Link programmer compatible (sold separately)
• Sensorless brushless & brushed modes
• Advanced brushed mode settings
• Sinusoidal brushless mode for slow speed crawler control
• Programmable Low-Voltage Cutoff & Drag Brake
• Integrated Voltage Sensor
• Telemetry (KISS, KISS auto, iBUS, S.Port, CRSF)
• Anti-arching and parasitic voltage spike protection
  **TVS Diode offers protection against


Given The nature of the hobby, we do a 90 day warranty on all products. The original item has to return back to us for inspection before a #Warranty is given.
