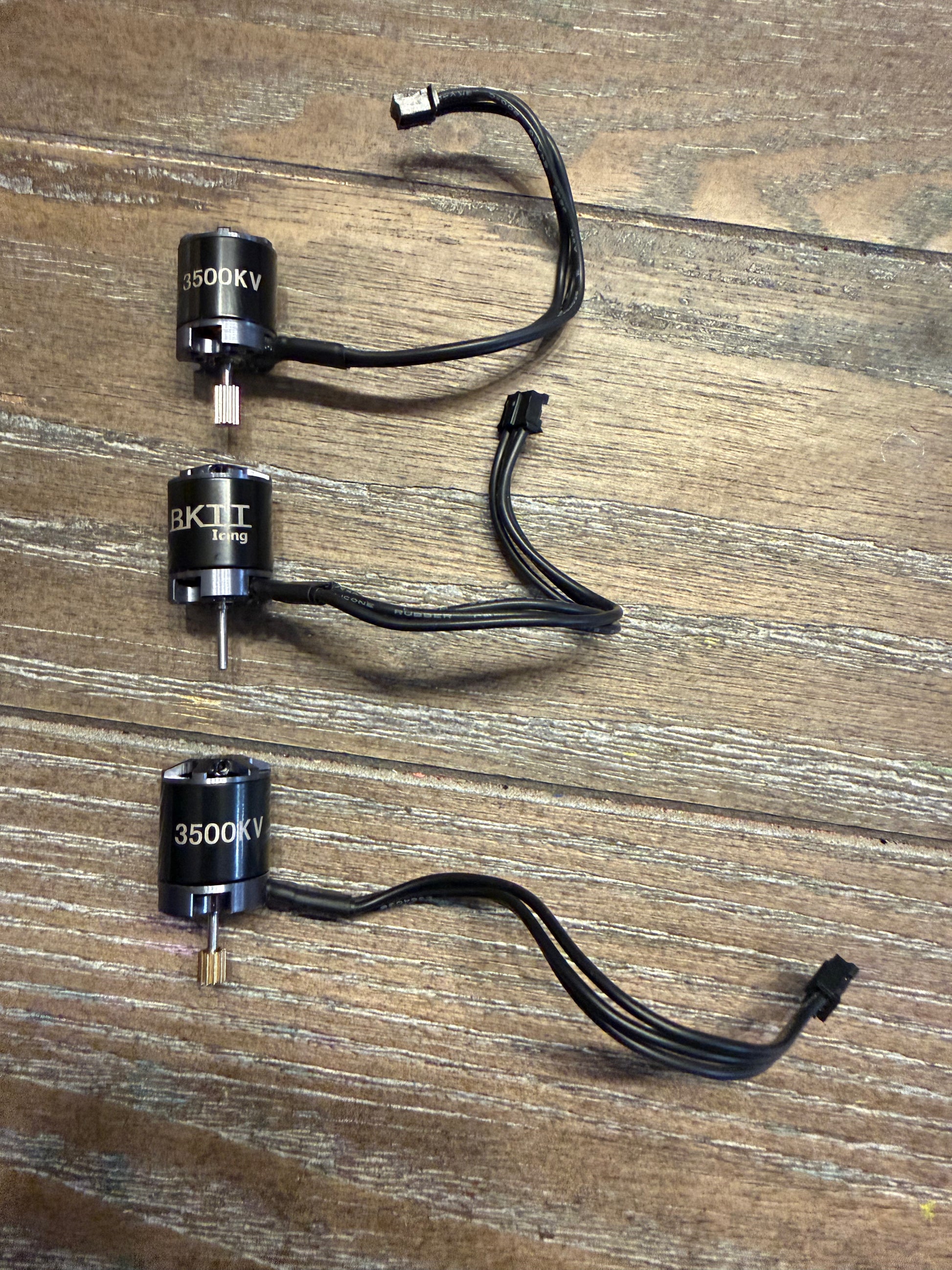

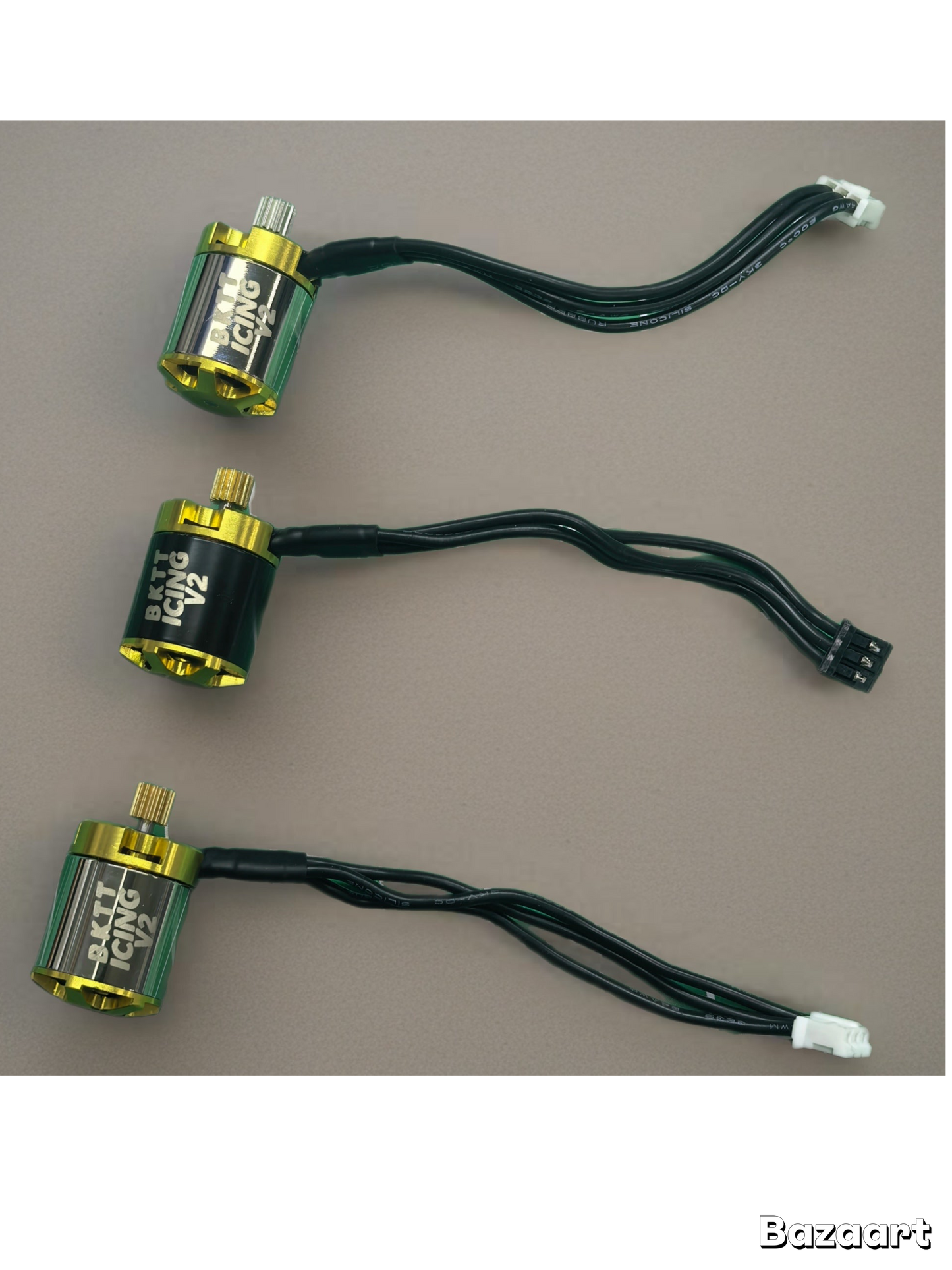

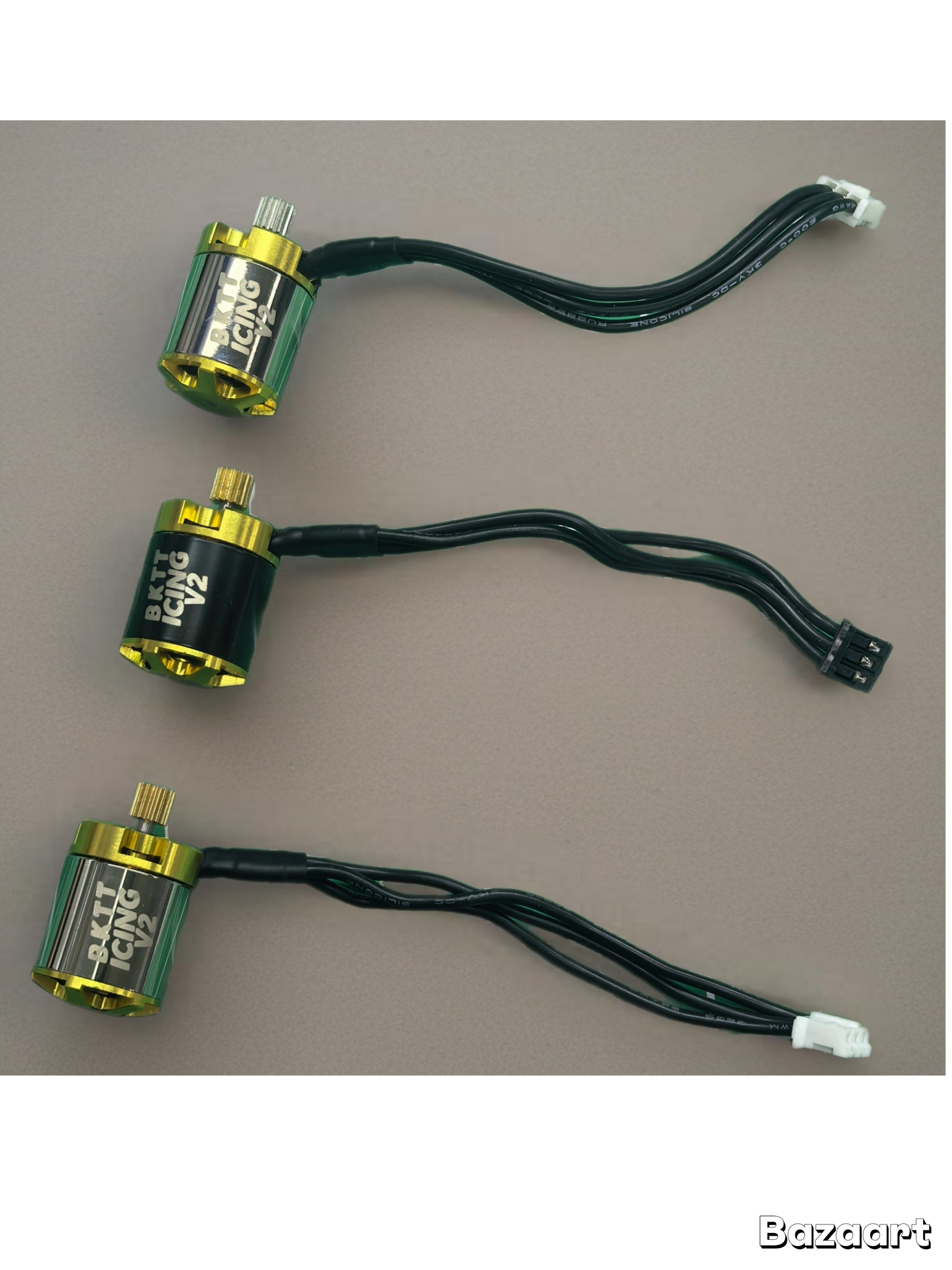

BKTT Icing motor lineup
BKTT Icing motor lineup
Couldn't load pickup availability
BKTT Icing V2 is collaborative designed set of brushless motor using the 1212 sized can and custom designed magnets to bring the extra edge to that setup. Motor is crafted from the finest metals for strength, power and weight. These boast a 9/12mm mounting pattern
motor specs:
Specifications
• KV (RPM/Motor): 2600
• No-Load Current @10V: 0.75A
• Power Output: 146W
• Battery Support: 2S–3S LiPo
• Resistance: 0.273Ω
• Max Current: 14.6A
• Slots / Poles: 12
• Motor Size: 15.5 × 20.6mm
• Shaft Diameter: 2mm
• Weight: 15.3g
• Bolt Pattern Spread: 9mm / 12mm
motor: 1212 can
Warranty:
Do to the nature of the hobby we do a 90 day warranty for any manufacturers defects. We do not cover any changes being made to the wiring or any damage caused by misuse. Item needs to be sent back for inspection before a replacement/warranty is given. no warranty is given for version with no pinion. We can press pinion on for you for a charge. Press at your own risk, any damage to the motor caused by press is not covered.
